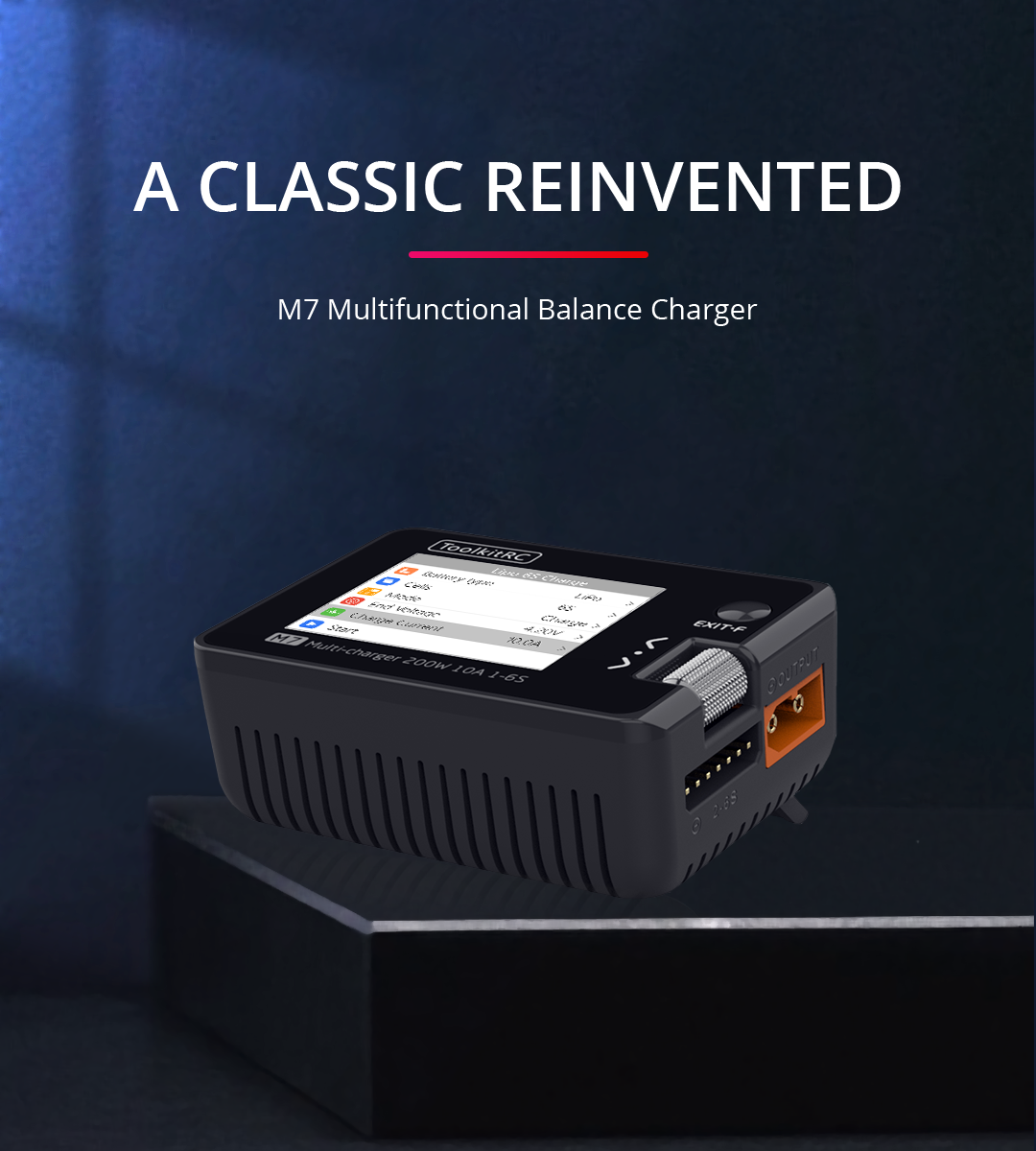

A CLASSIC REINVENTED

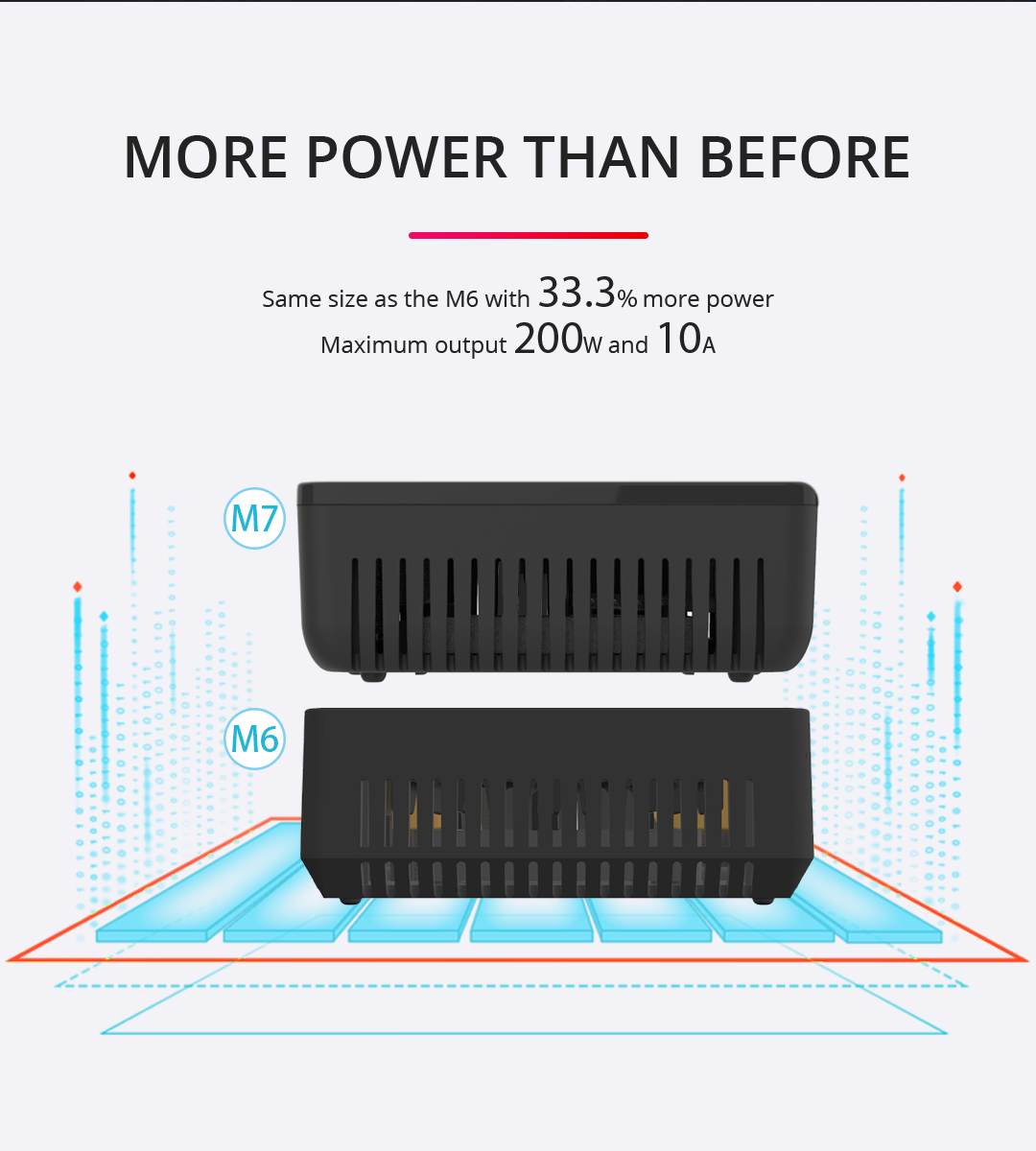

MORE POWER THAN BEFORE

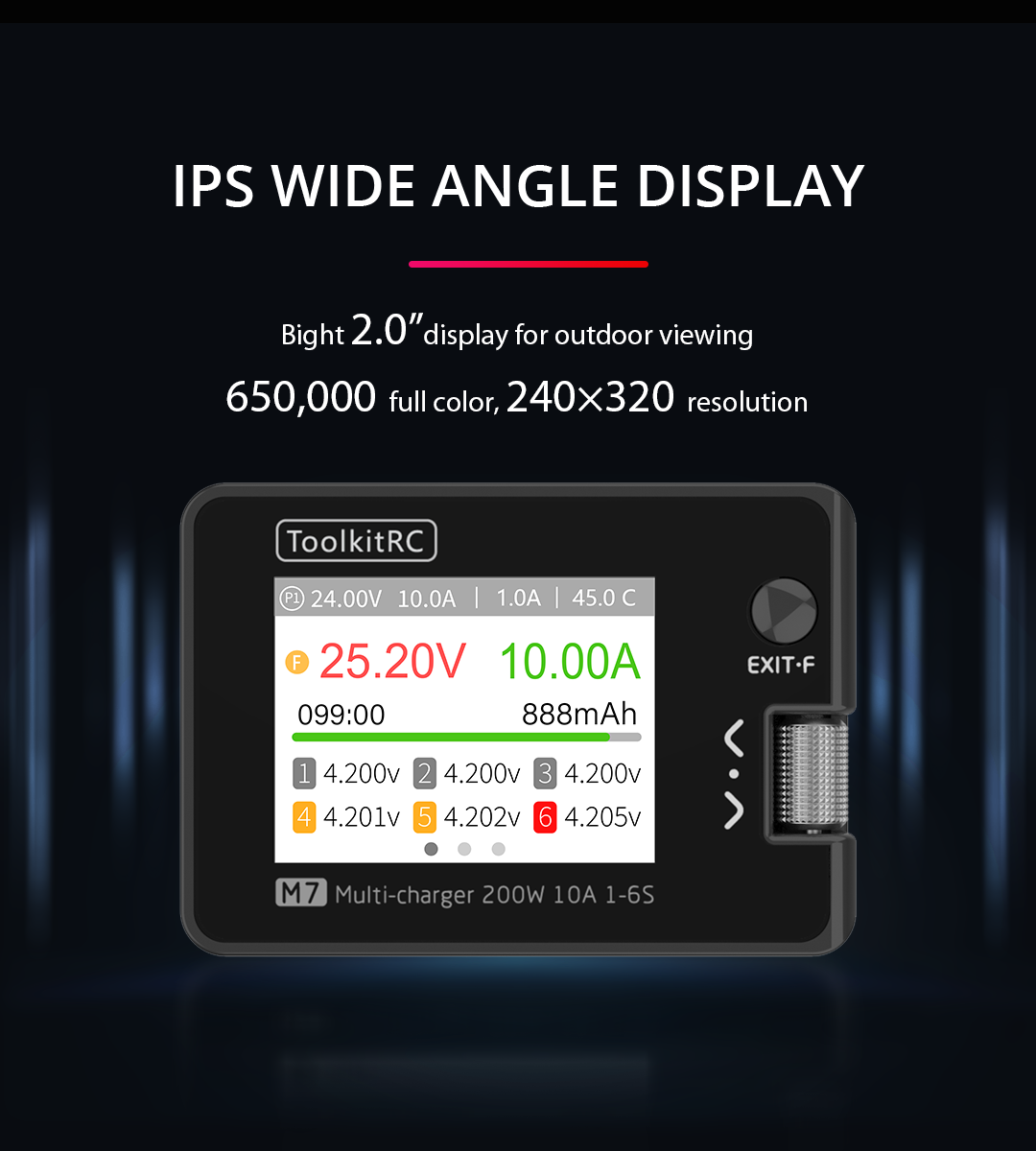

IPS WIDE ANGLE DISPLAY
Long life
wheel sensor for
years of trouble-free use

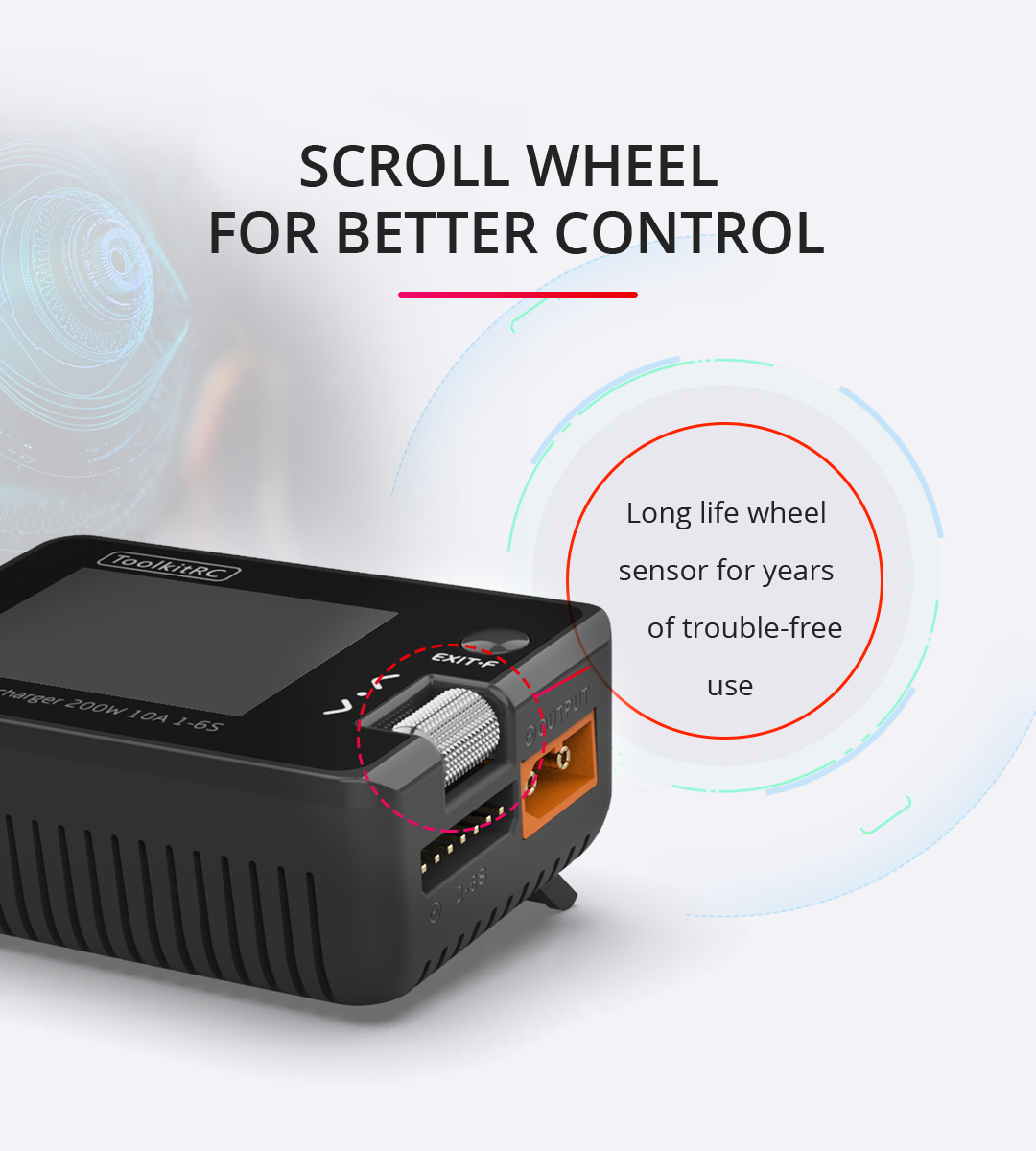

SCROLL WHEEL
FOR BETTER CONTROL

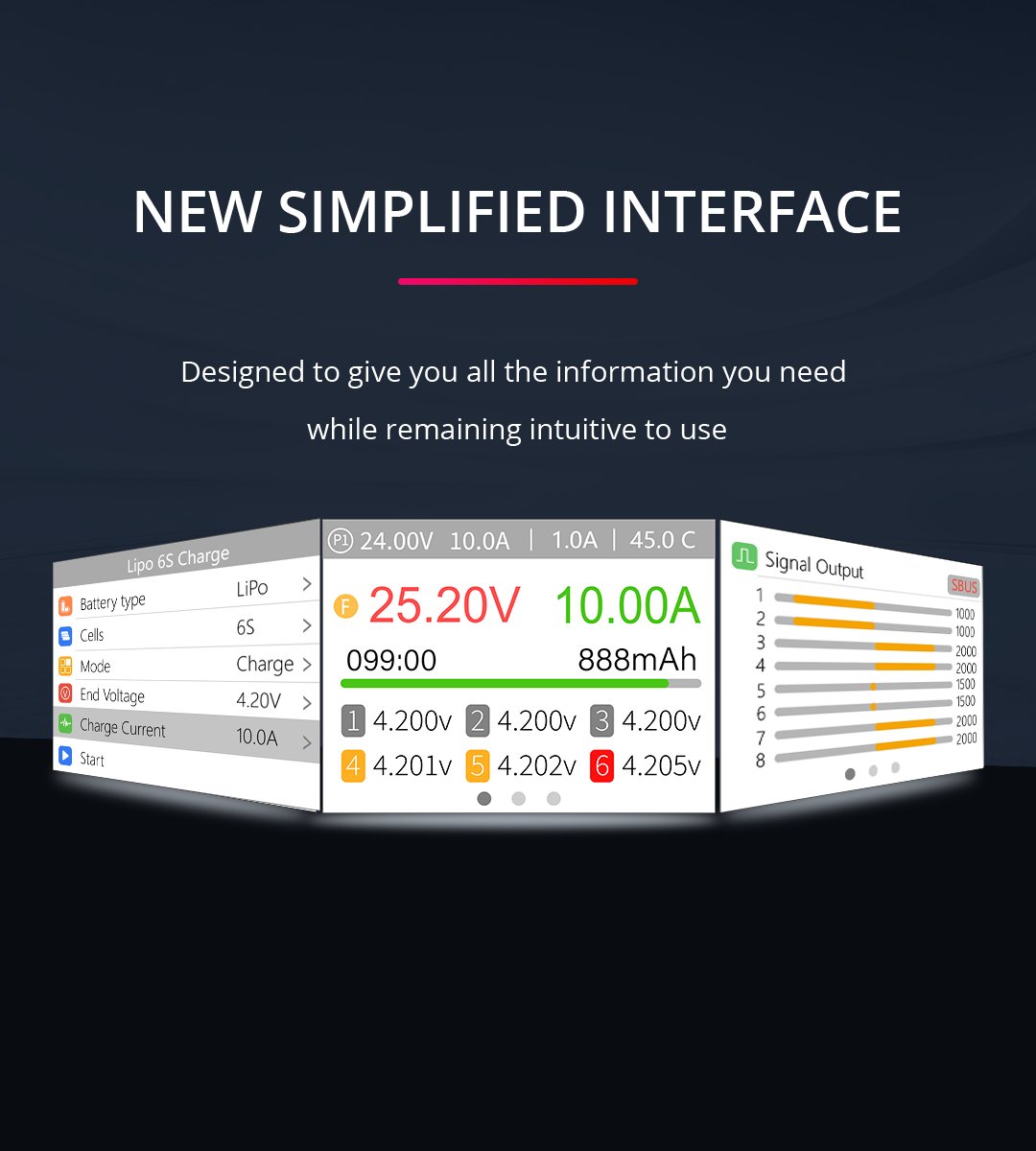

NEW SIMPLIFIED INTERFACE
Designed to give you all the information you need while remaining intuitive to use
All the multi-functionality
you have come to expect from ToolkitRC

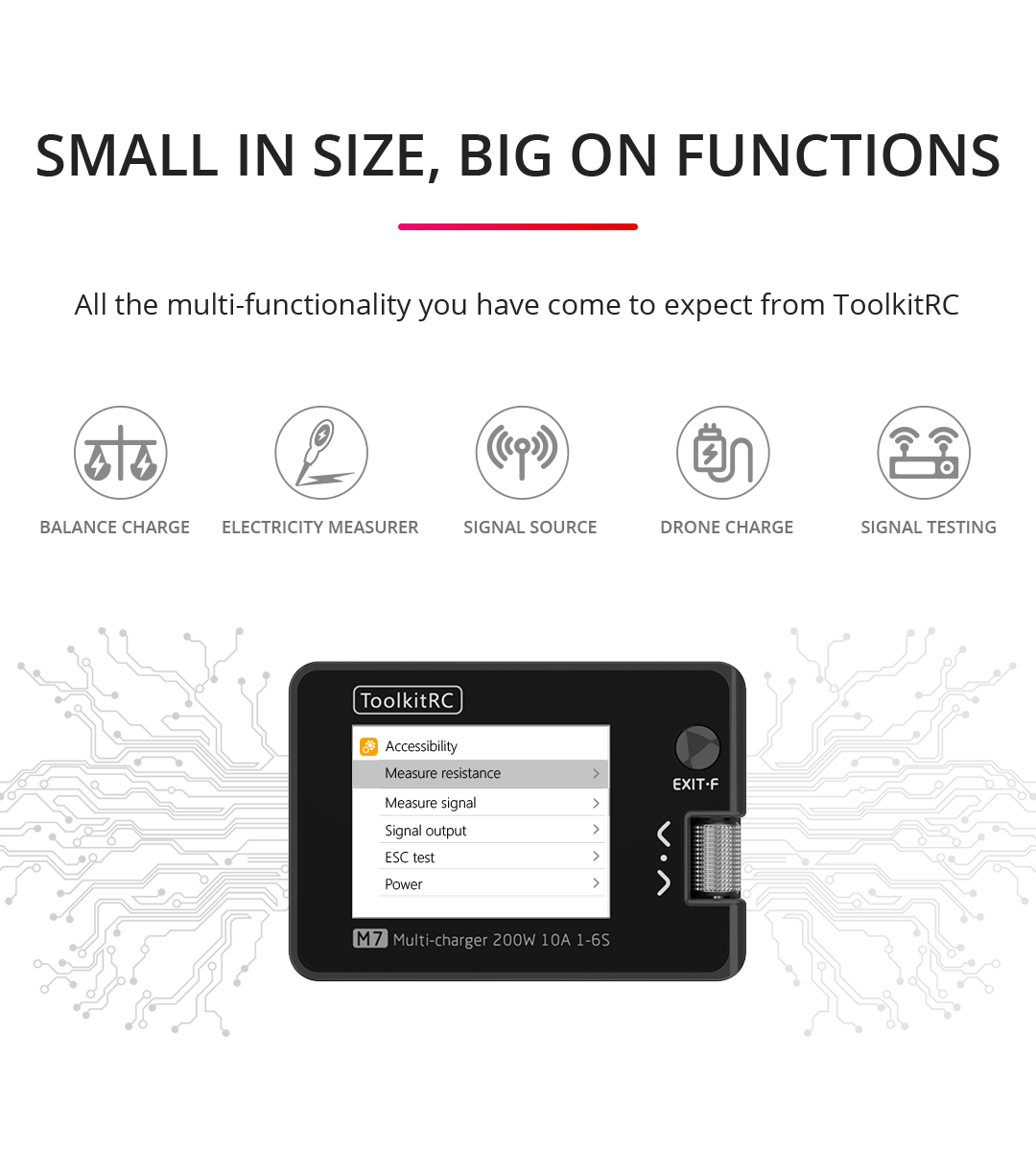

SMALL IN SIZE
BIG ON FUNCTIONS
M7 Multifunctional Balance Charger
Same size as the M6 with 33.3% more power
Maximum output 200W and 10A
Bight 2.0”display for outdoor viewing
650,000 full color, 240×320 resolution
Balance charge Electricity measurer Signal source Drone charge Signal testing
M7 SPECS
General
Product size
Product weight
Pack size
Pack weight
LCD
Charger
Input voltage
Type of battery
Balance current
Charger power
Discharge power
USB
7.0-28.0V @MAX 12A
Lipo LiHV LiFe Lion@1-6S
NiMh @1-16S Pb @1-10S
400mA @2-6S
200W @MAX 10A
200W @MAX 10A Recycle mode
10W@3A Normal mode
2.1A @5.0V or Upgrade
73*51*27 mm
90g
84*79*39 mm
150g
IPS 2.0inch LCD 320*240 Pixel
Measurer
PWM
PPM
SBUS
Voltage
Internal resistance
ESC
Output
PWM
PPM
SBUS
Power supply
OverCurrent Cutoff time
880-2200us @20-400Hz
880-2200us*8CH @20-50Hz
880-2200us*16CH @20-100Hz
1.0-5.0V @1-6S
1-99mR @1-6S
200W@10A PWM Output
500-2500us @20-1000Hz
880-2200us*8CH @20-50Hz
880-2200us*16CH @20-100Hz
1.0-28.0V @1.0-10A mode:CC+CV
<5ms
