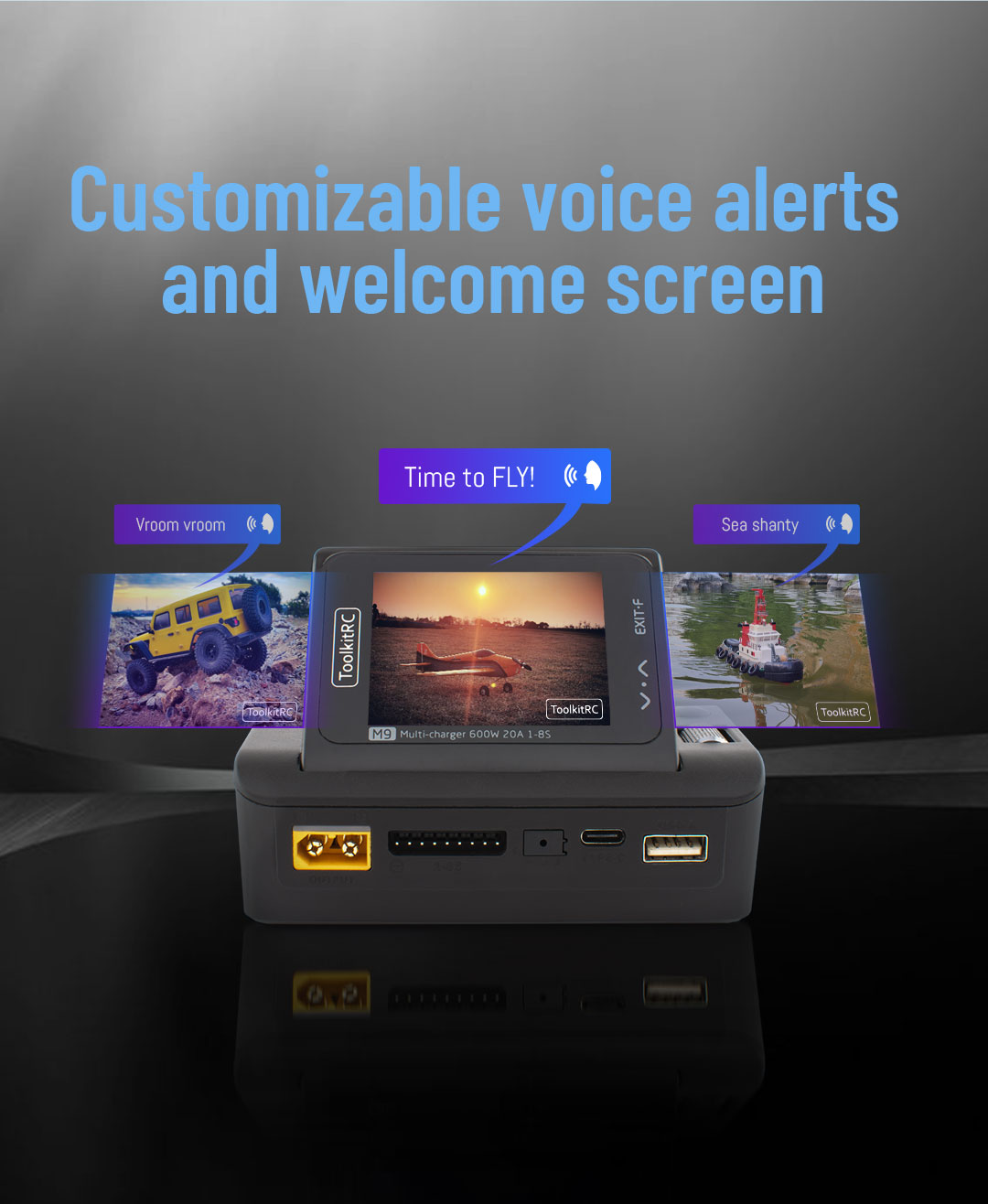

Customizable voice alerts
and welcome screen

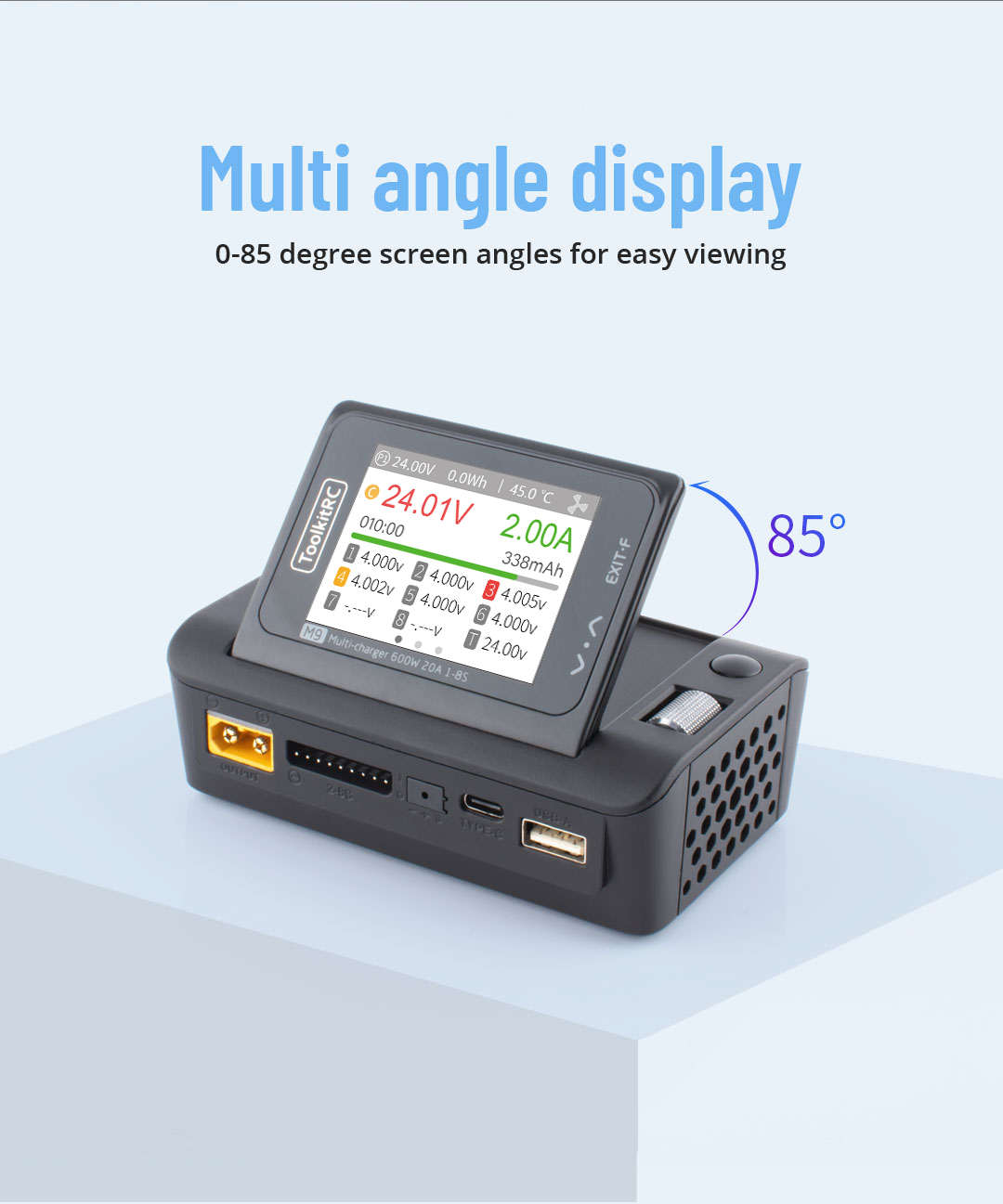

Multi-angle display
2-8S capable,with automatic cell balancing
Massive 600W output
Dual USB fast charging
65W maximum USB-C/USB-A output for mobile devices

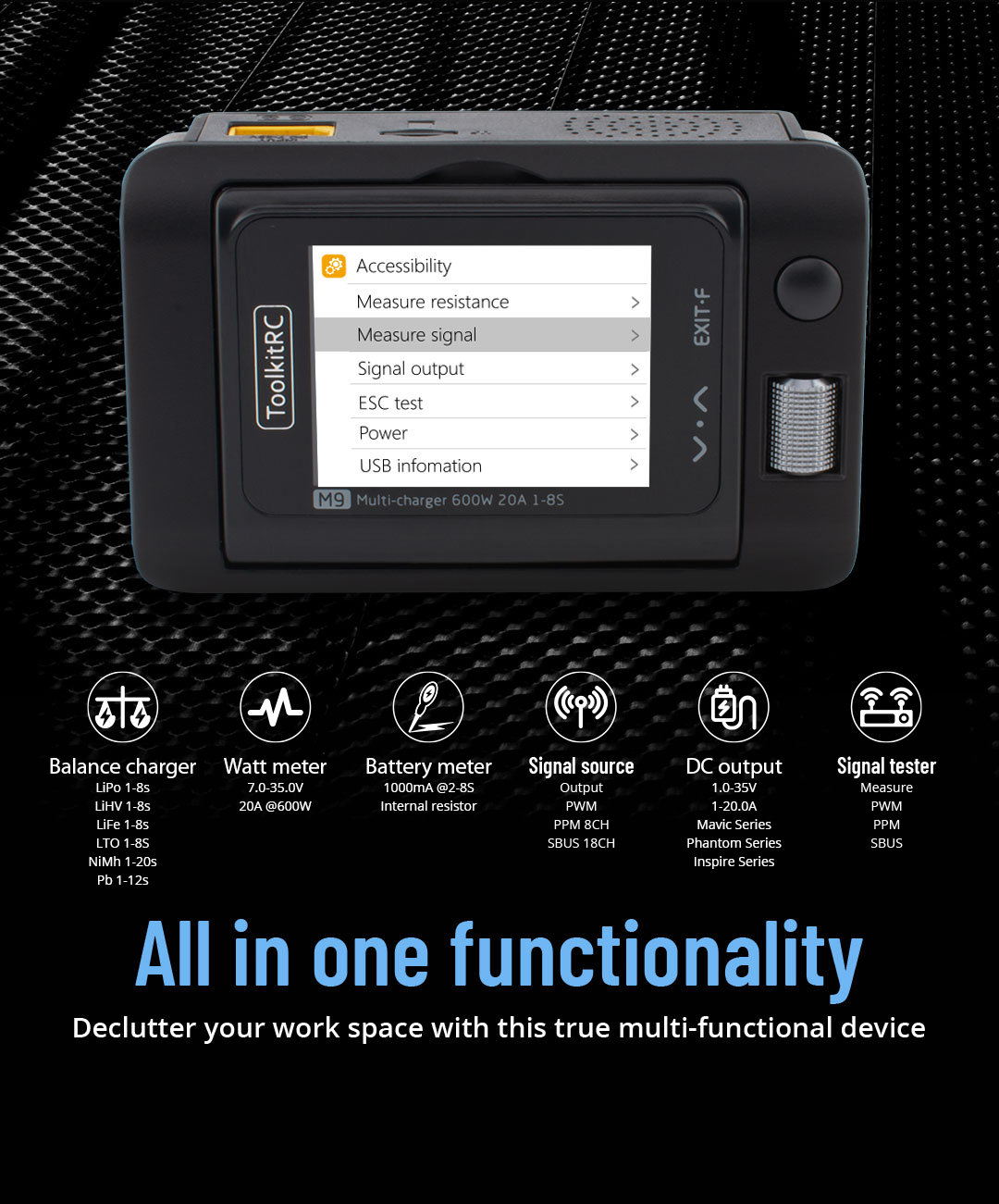

Declutter your work space with this true multi-functional device
All in one functionality
A charger that talks！
0-85 degree screen angles for easy viewing

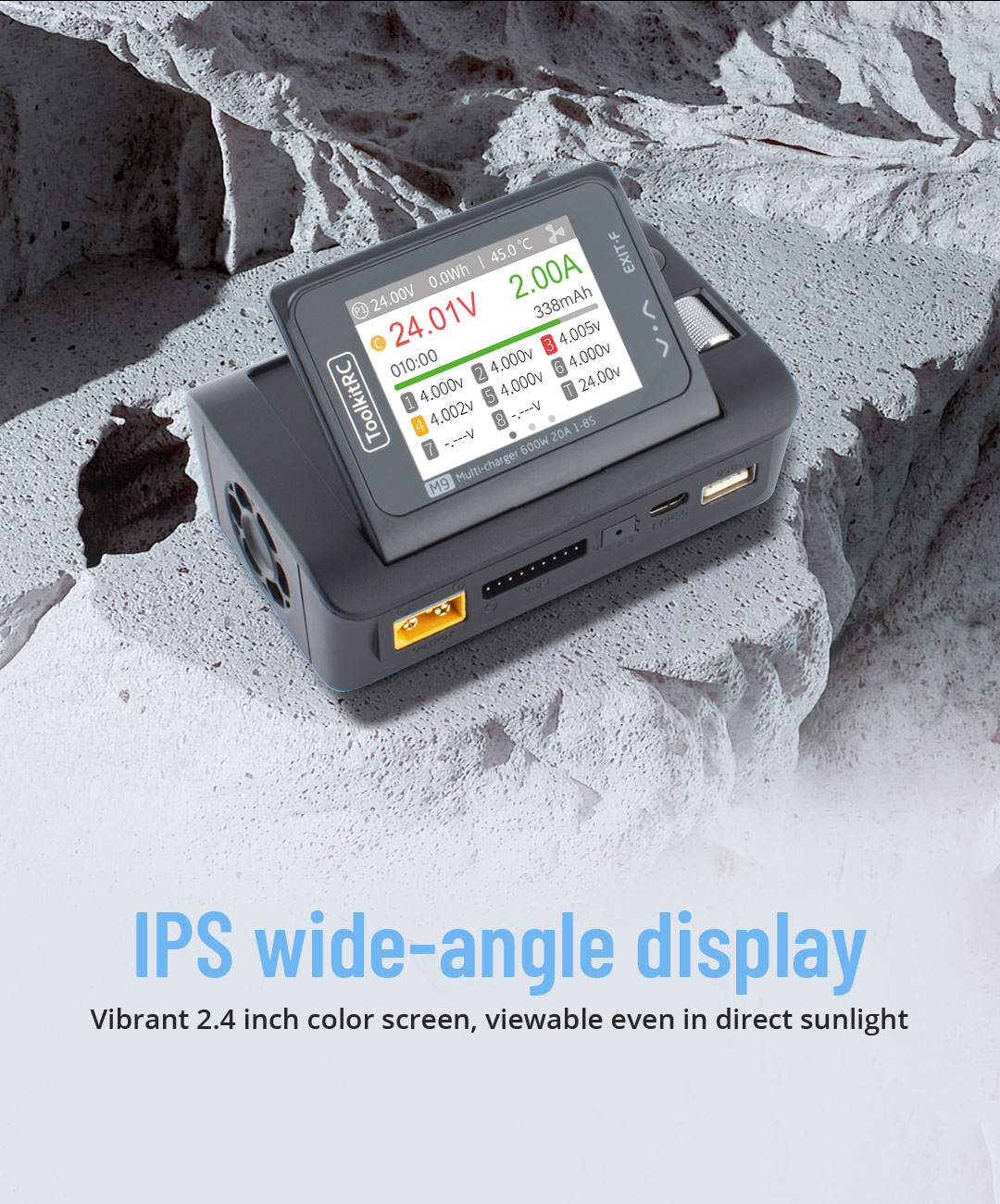

Vibrant 2.4inch color screen,viewable even in direct sunlight
IPS wide-angle display
M9 SPEC
General
product size
product weight
packing size
packaging weight
LCD
Charger
input voltage
battery type
balance current
charging power
discharge power
USB
7.0-35.0V @MAX 25A
Lipo LiHV LiFe Lion LTO@1-8S
NiMh @1-20S Pb @1-10S
1000mA @ 4.2V
600W @MAX 20A
600W @MAX 20A Recycle mode
20W@3A Normal mode
65W@5.0-20.0V or Upgrade by USB-A
108*71*36mm
235g
135*81*44mm
330g
IPS 2.4 inch LCD 320*240 resolution
measurer
PWM
PPM
SBUS
voltage
Internal resistance
ESC
Output
PWM
PPM
SBUS
power supply
Overcurrent response
880-2200us @ 20-400Hz
880-2200us * 8CH @ 20-50Hz
880-2200us * 16CH @ 20-100Hz
1.0-5.0V @ 1-8S
0.1 mR-99R @ 1-8S
600W @ 20A
500-2500us @ 20-1000Hz
880-2200us * 8CH @ 20-50Hz
880-2200us * 16CH @ 20-100Hz
1.0-35.0V @1.0-20A mode:CC CV
<5ms
