600W Max Power

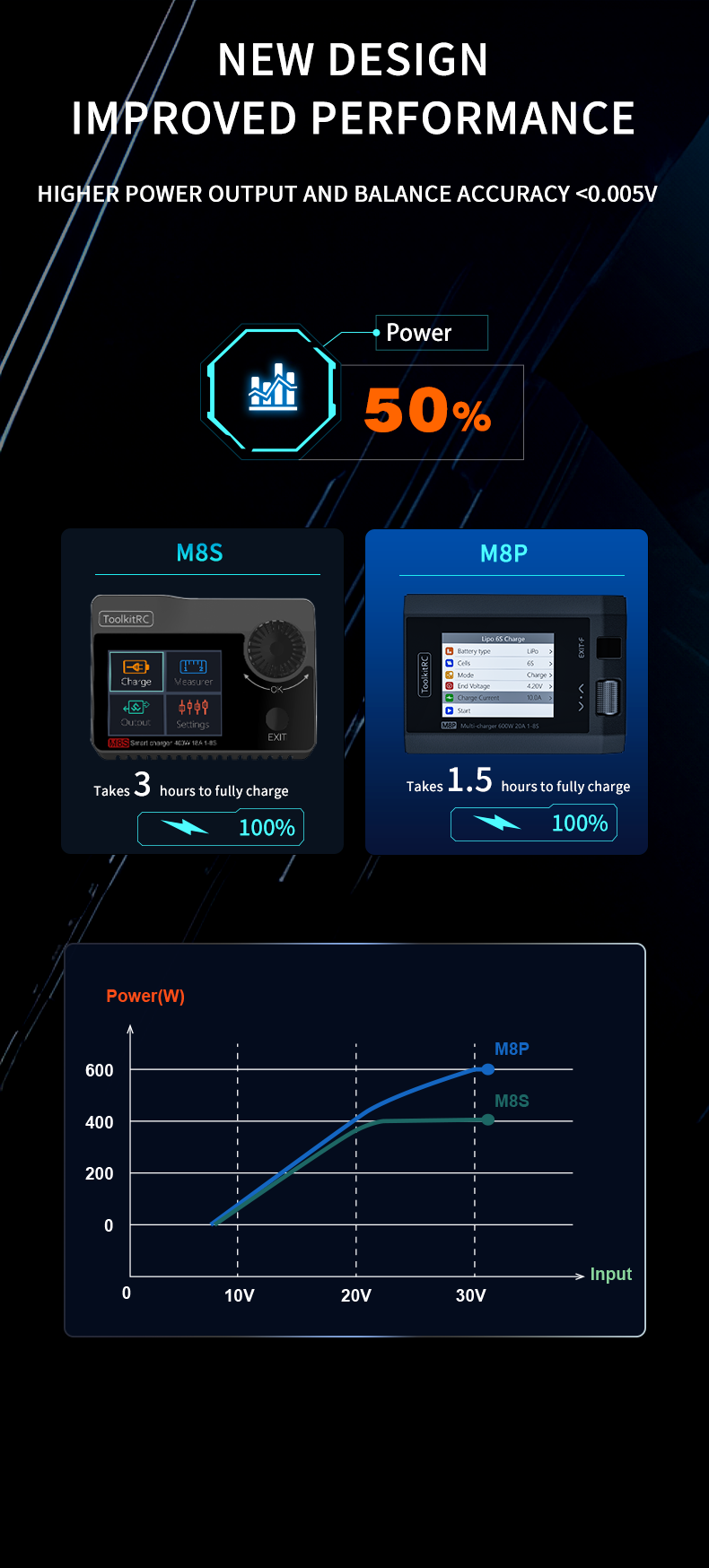

New Design Improved Performance
More than a charger

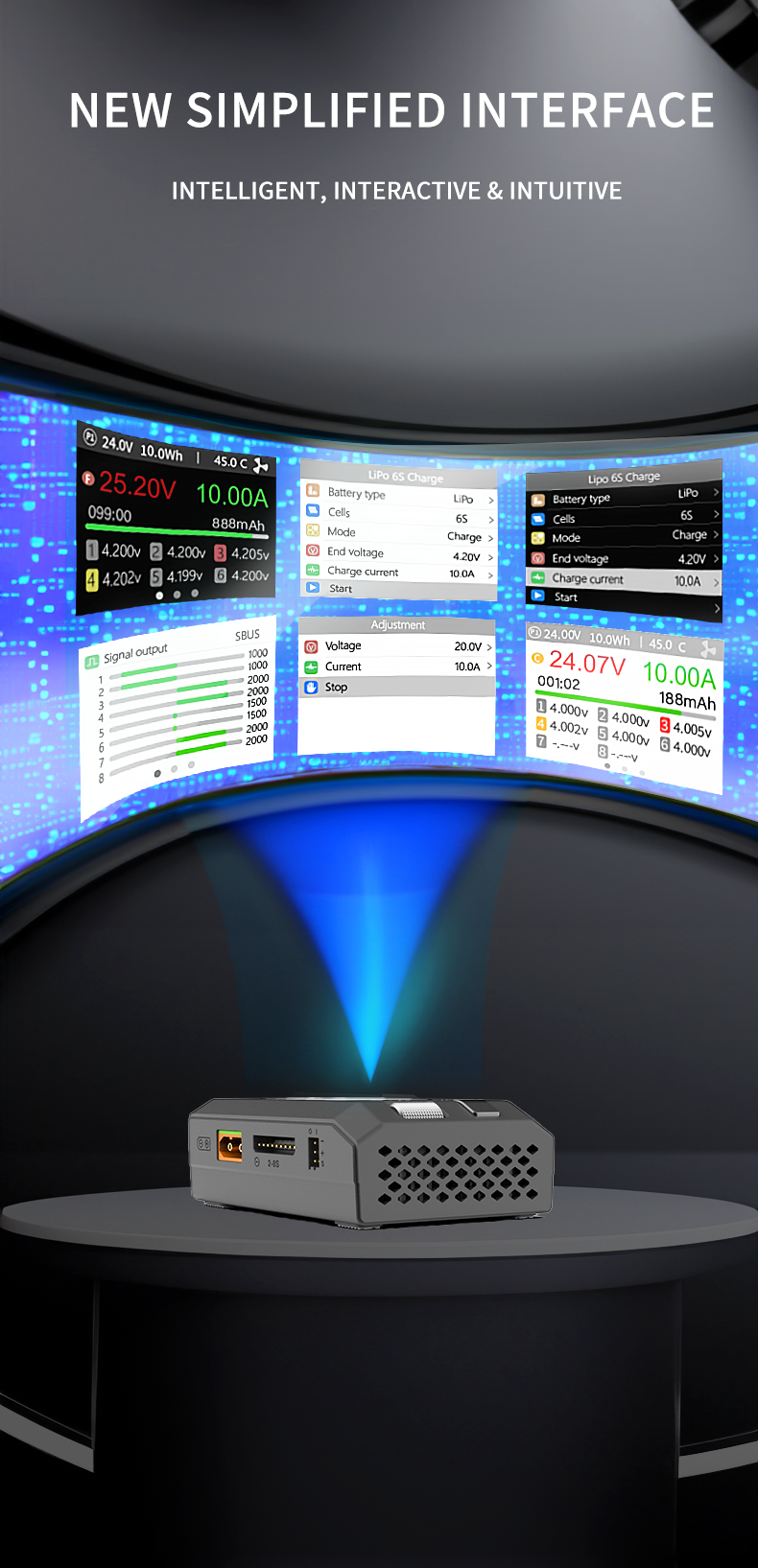

New simplified interface
Provides excellent tactile feel
65535 colors， 2.4 Inch Better outdoor/ strong ambient light visibility

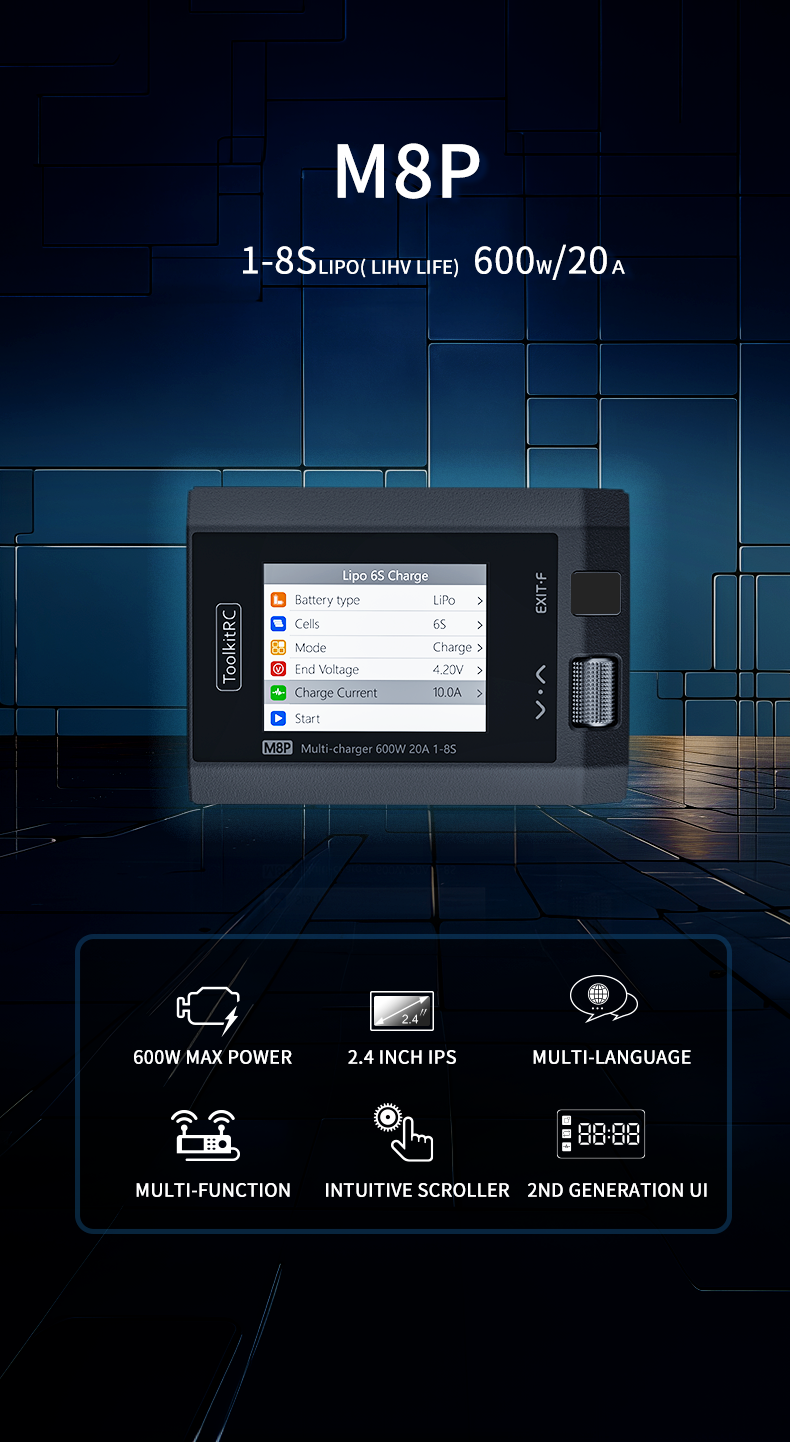

M8P
1-8S LiPo( LiHV LiFe) 600W/20A
Multi-function
2.4 Inch IPS
Intuitive scroller
Multi-language
Higher Power Output and Balance Accuracy <0.005V

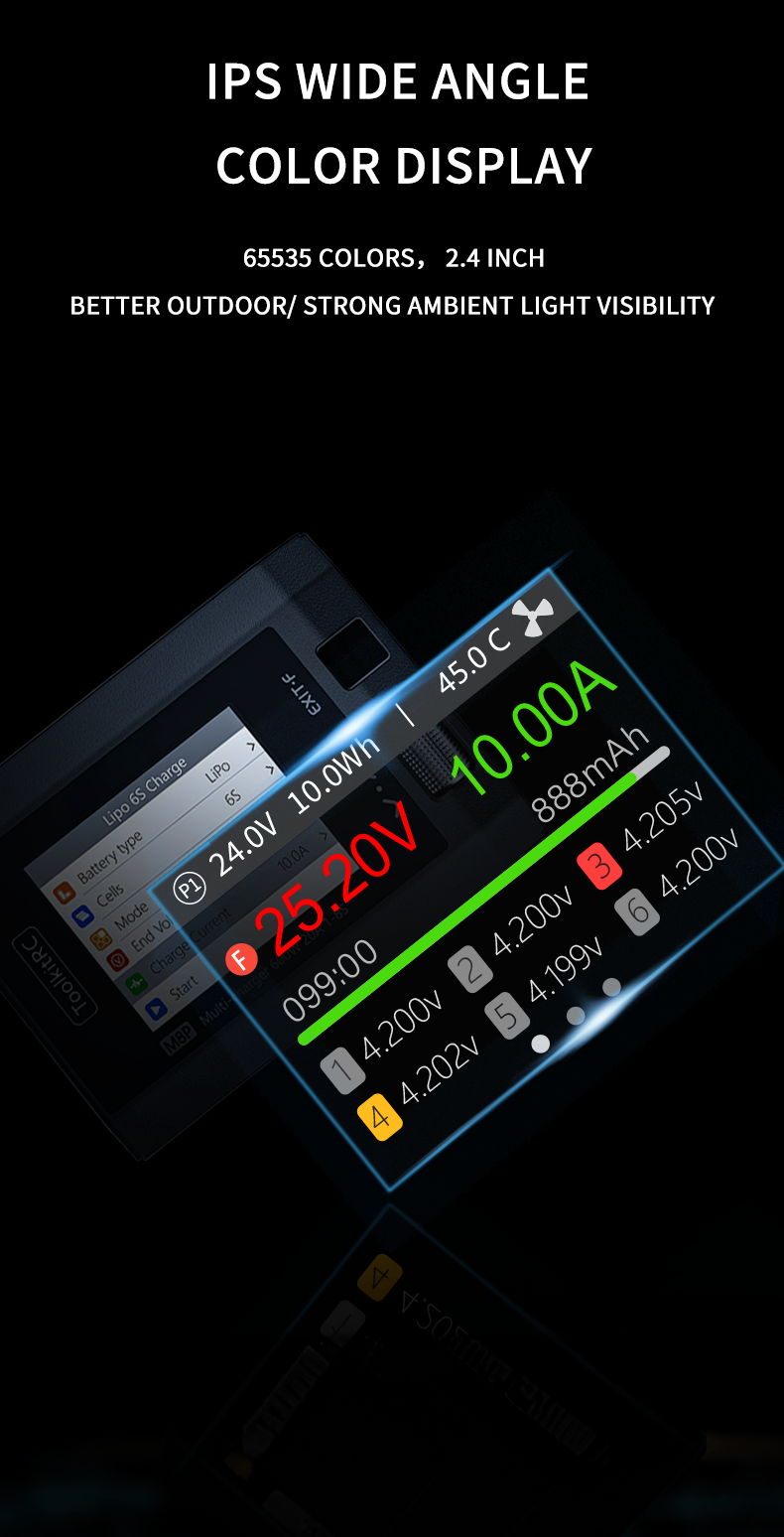

IPS Wide Angle color display
Your all-in-one toolkit

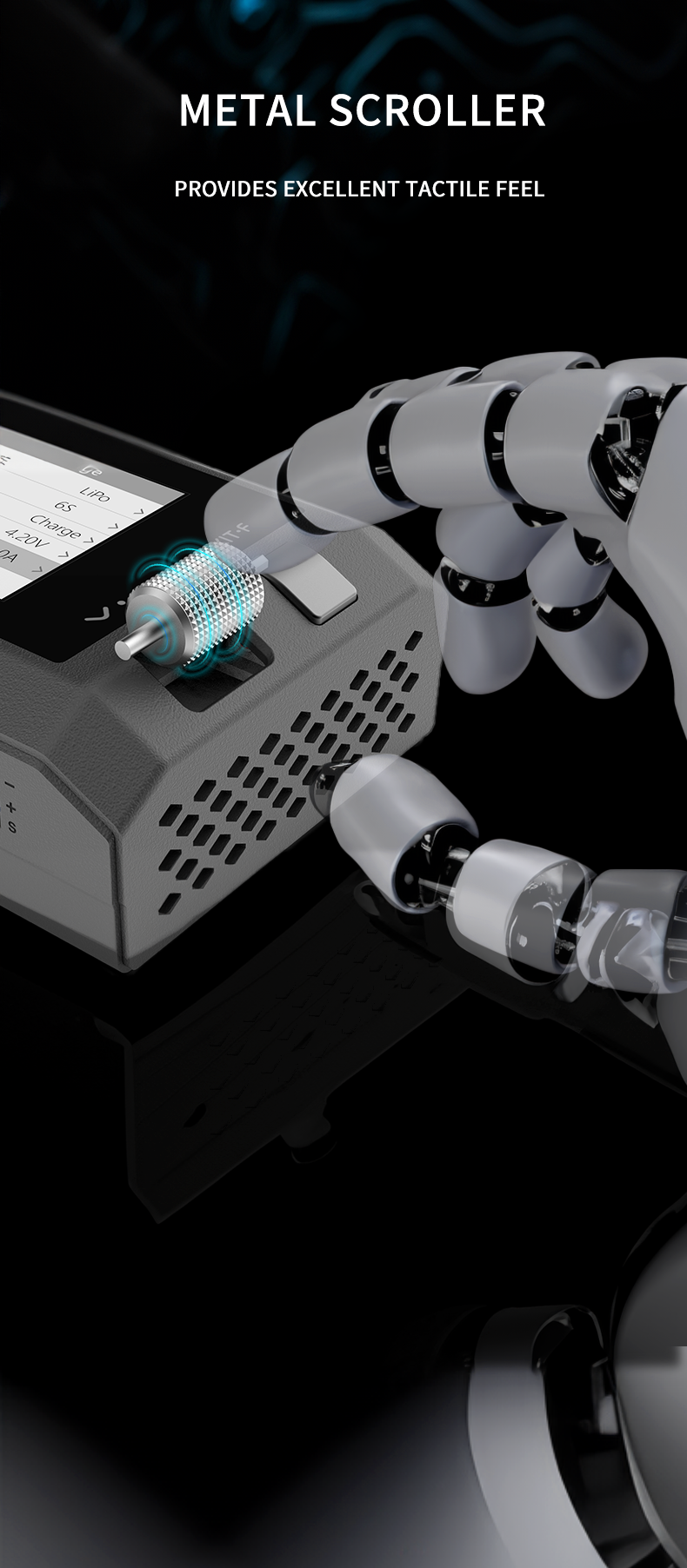

Metal scroller
Intelligent, interactive & intuitive

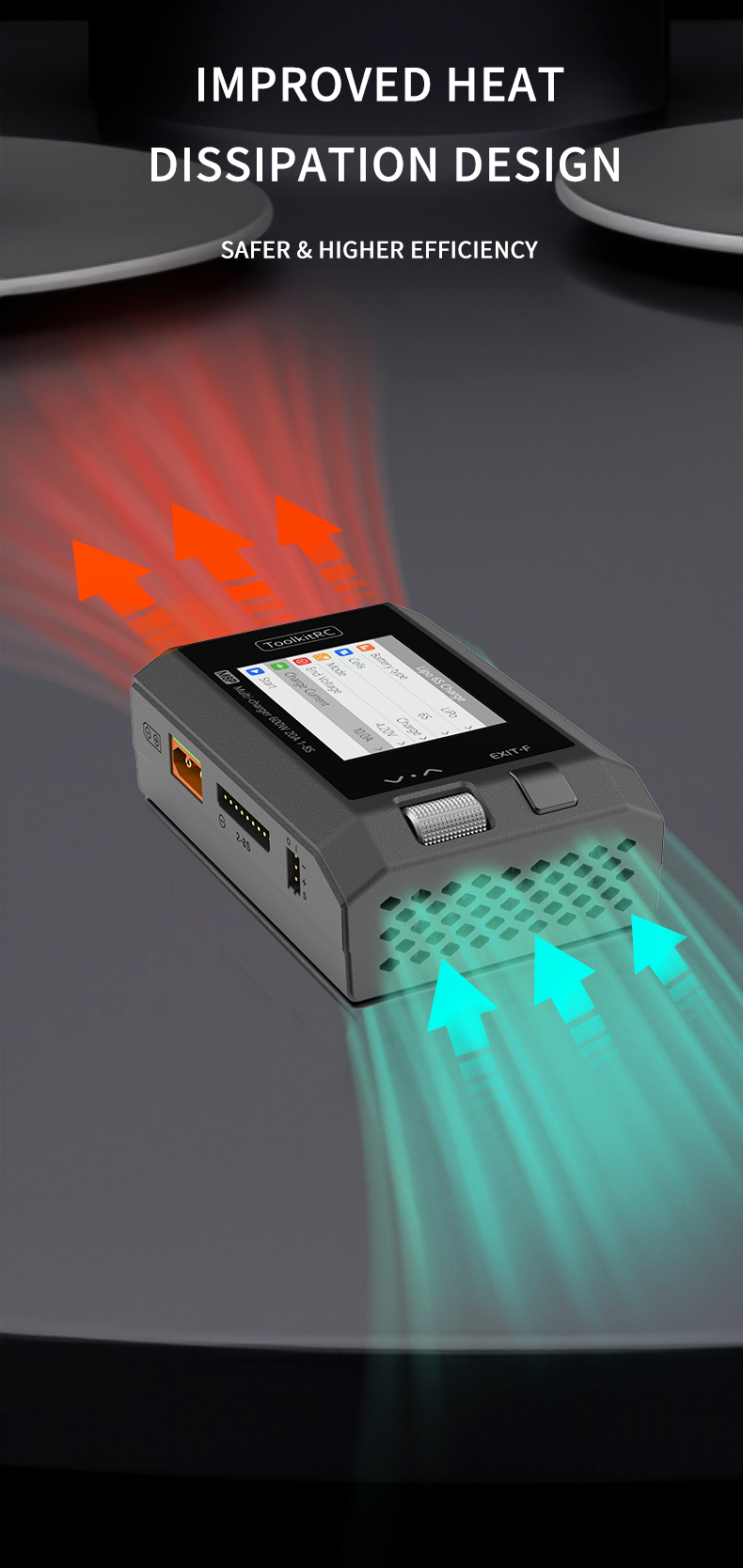

Improved heat dissipation design
Safer & Higher efficiency
2nd generation UI
M8P SPEC
General
product size
product weight
packing size
packaging weight
LCD
Charger
input voltage
battery type
balance current
charging power
discharge power
USB
99*72*35mm
180g
125*81*41mm
250g
IPS 2.4 inch LCD 320*240 resolution
7.0-35.0V @MAX 25A
Lipo LiHV LiFe Lion LTO@1-8S
NiMh @1-20S Pb @1-12S
1000mA @ 4.2V
600W @MAX 20A
600W @MAX 20A Recycle mode
20W@3A Normal mode
2.1A@5.0V or Upgrade
Measurer
PWM
PPM
SBUS
voltage
Internal resistance
ESC
Output
PWM
PPM
SBUS
power supply
Overcurrent response
880-2200us @ 20-400Hz
880-2200us * 8CH @ 20-50Hz
880-2200us * 16CH @ 20-100Hz
1.0-5.0V @ 1-8S
0.1 mR-99R @ 1-8S
600W @ 20A
500-2500us @ 20-1000Hz
880-2200us * 8CH @ 20-50Hz
880-2200us * 16CH @ 20-100Hz
1.0-35.0V @1.0-20A mode:CC CV
<5ms
