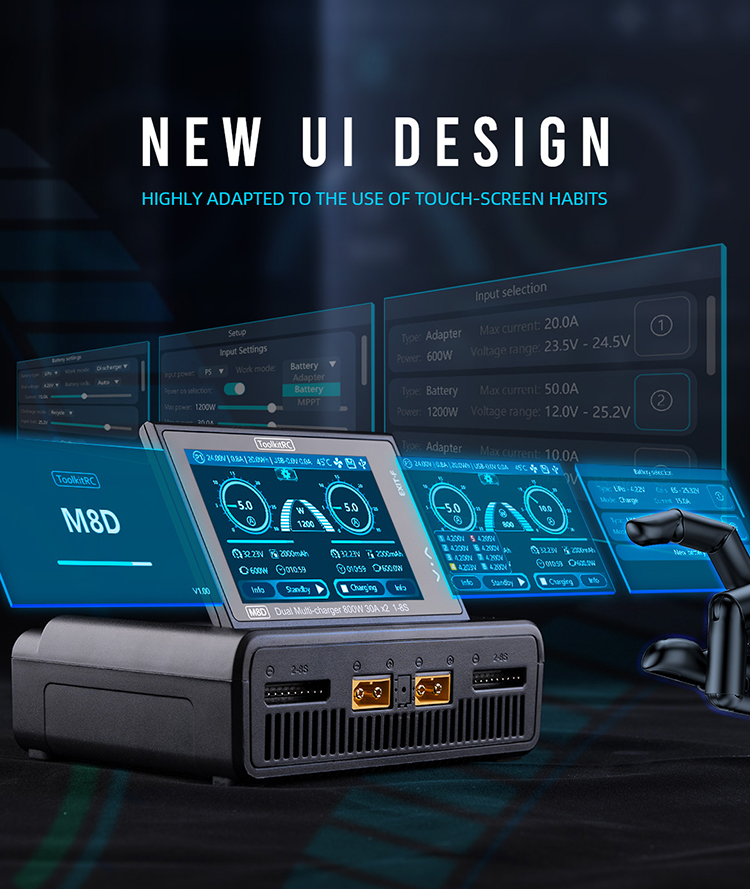

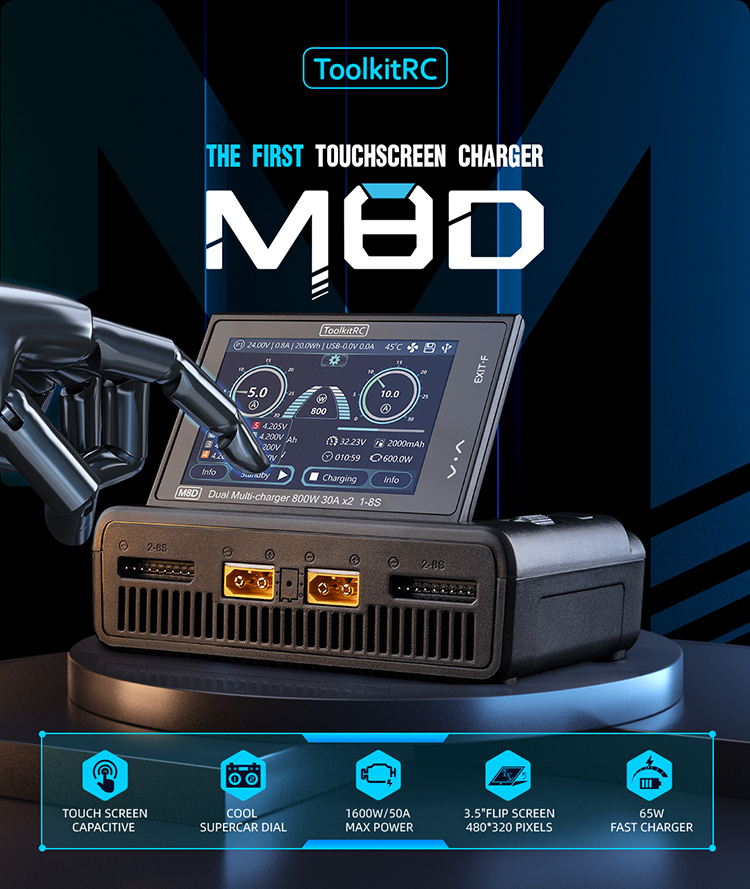

NEW UI DESIGN
Highly adapted to the use of touch-screen habits

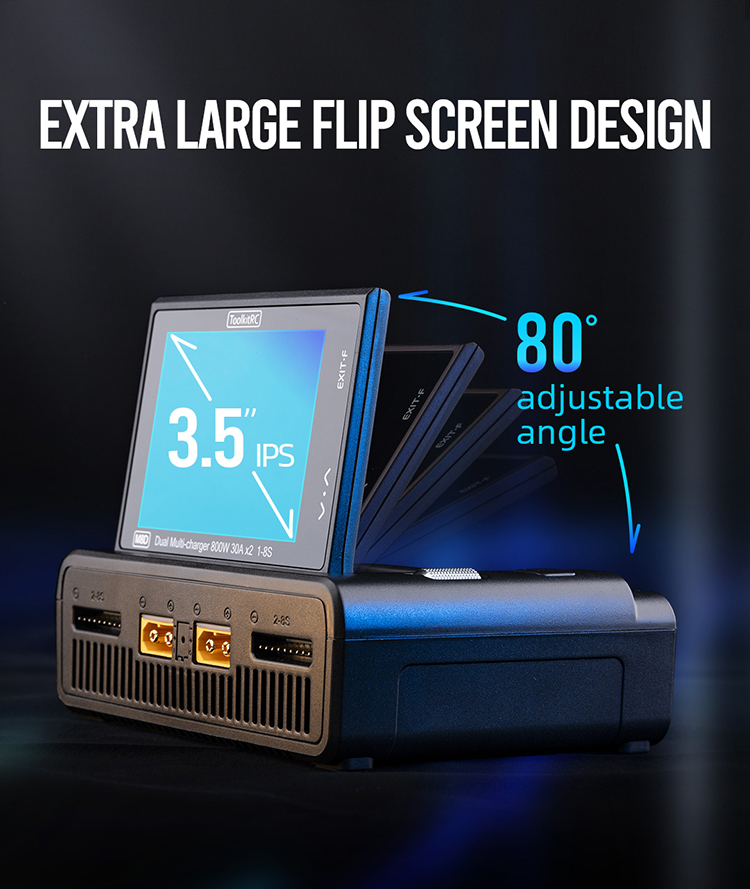

EXTRA LARGE FLIP
SCREEN DESIGN

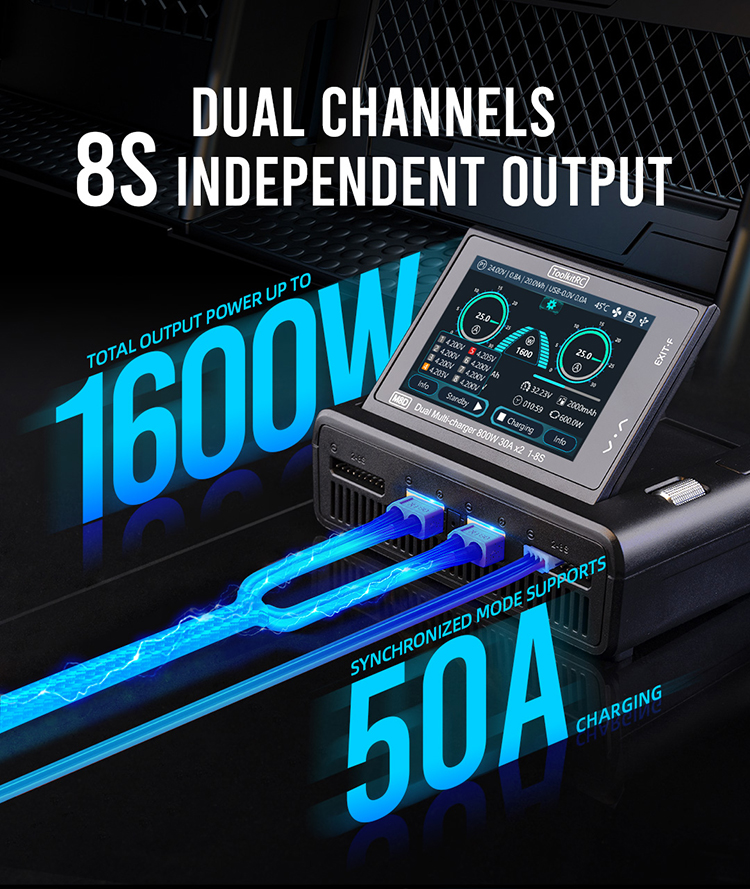

DUAL CHANNELS 8S INDEPENDENT OUTPUT
DUAL CHANNELS 8S INDEPENDENT OUTPUT

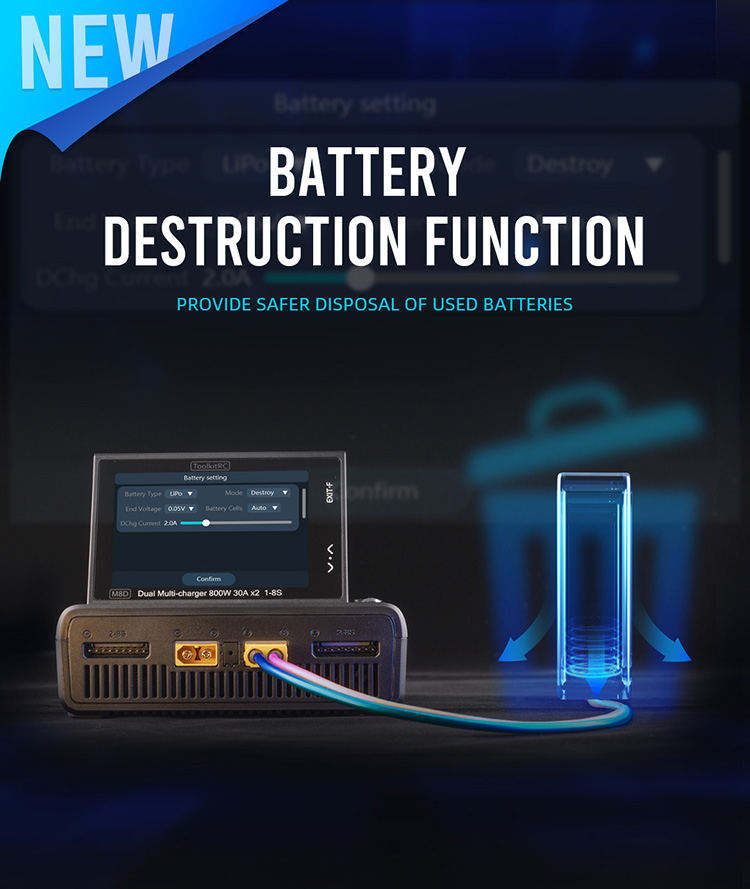

BATTERY DESTRUCTION FUNCTION
Provide safer disposal of used batteries

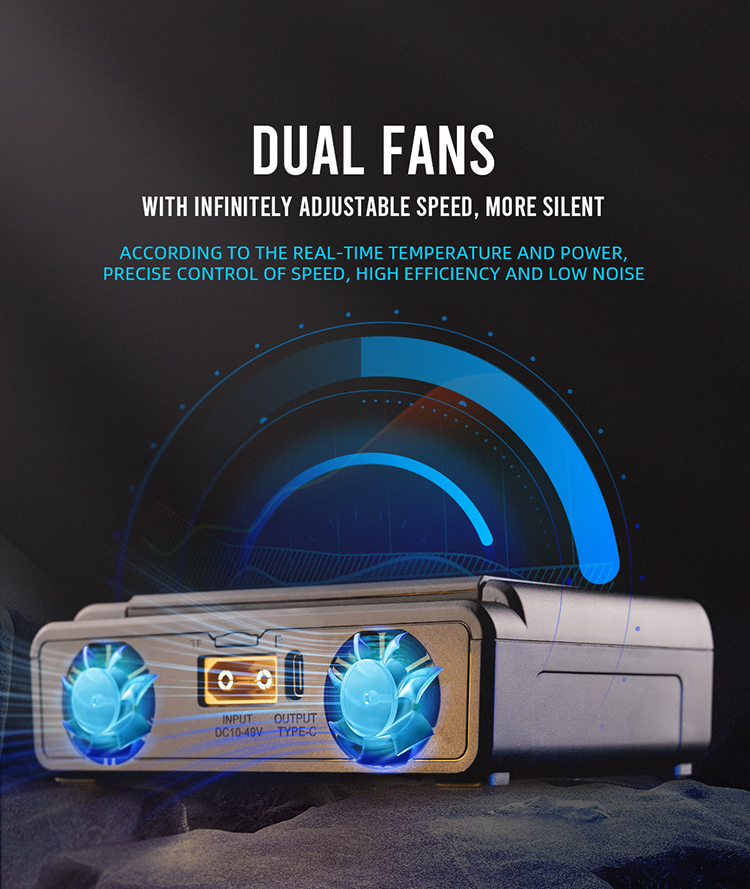

DUAL FANS WITH INFINITELY
ADJUSTABLE SPEED, MORE SILENT
According to the real-time temperature and power, precise control of speed, high efficiency and low noise

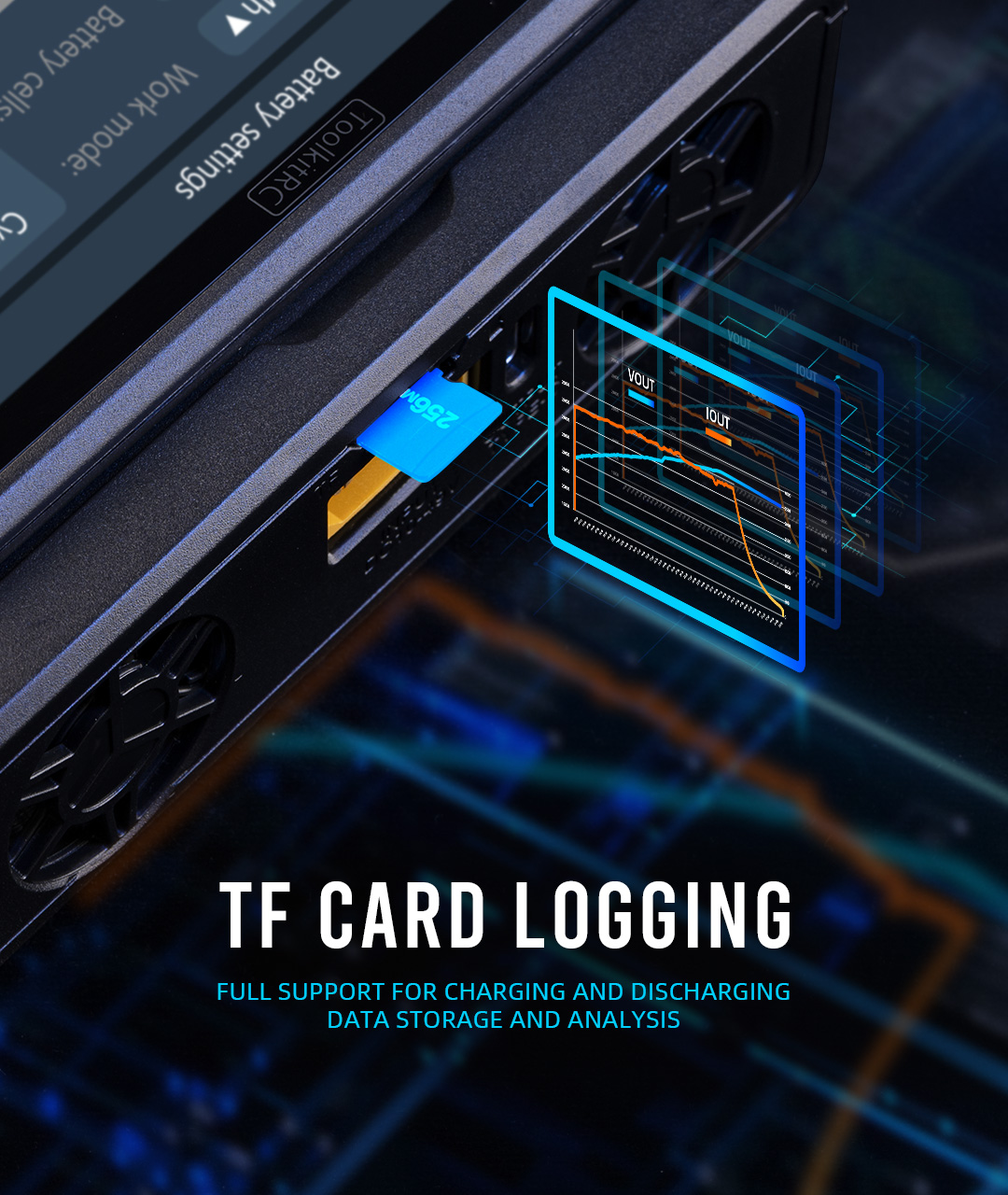

TF CARD LOGGING
Full support for charging and discharging data storage and analysis

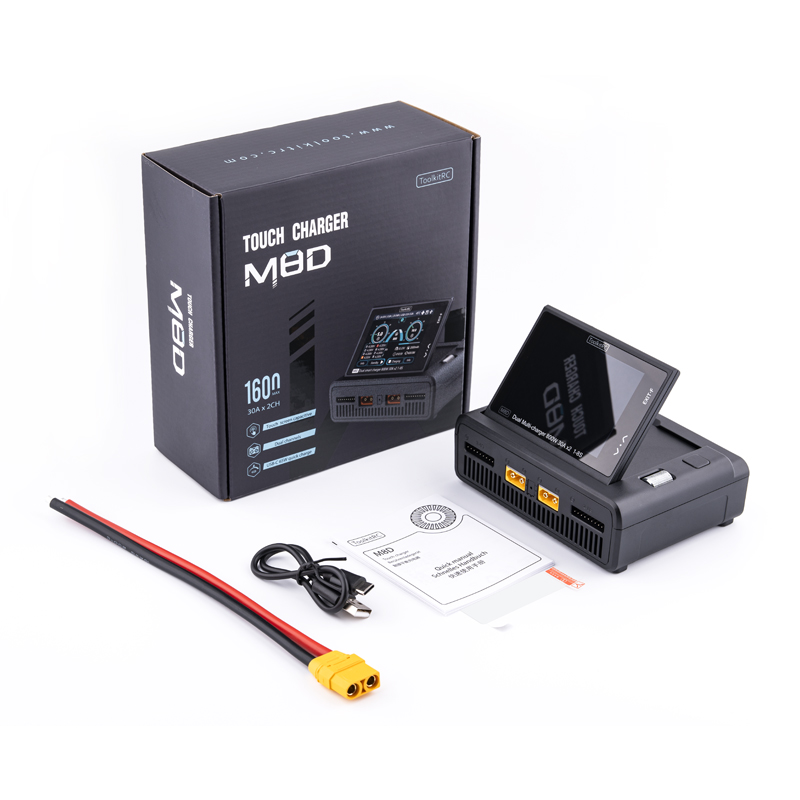

IN THE BOX
M8D Charger × 1, USB-C Cable × 1, XT90 Input Cable × 1, Manual × 1, Screen Protector × 1
SPEC
Input
10-49V @MAX 60A
Battery type
Lipo LiHV LiFe Lion LTO@1-8S
NiMh @1-20S Pb @1-12S
Balance current
2000mA @ 4.2V
Charging power
800W@MAX 30A*2 (Asynchronous mode)
1600W@MAX 50A (Synchronous mode)
Discharging power
800W @MAX 30A *2 Recycle mode
40W@10A Normal mode
USB-C output
65W@5.0-20.0V or Upgrade

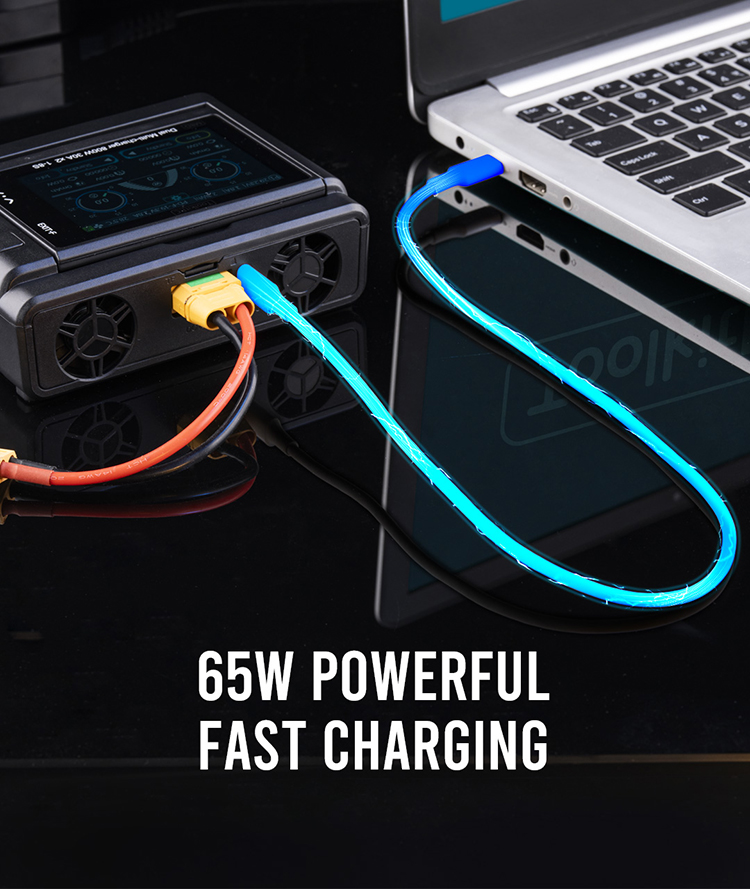

Tip: when input under 10~36V, the 65W USB-C output is available

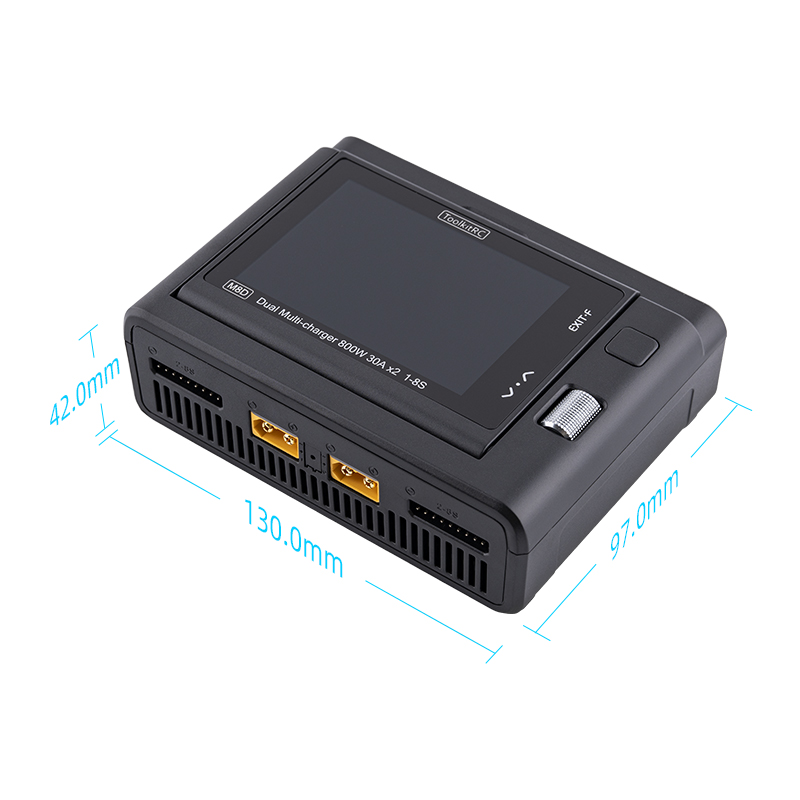

Product size
130.0*97.0*42.0mm
Product weight
450g
Pack size
140.0*110.0*50.0mm
Pack weight
700g
LCD
IPS 3.5” LCD 320*480 pixel
Touch panel
Capacitive
