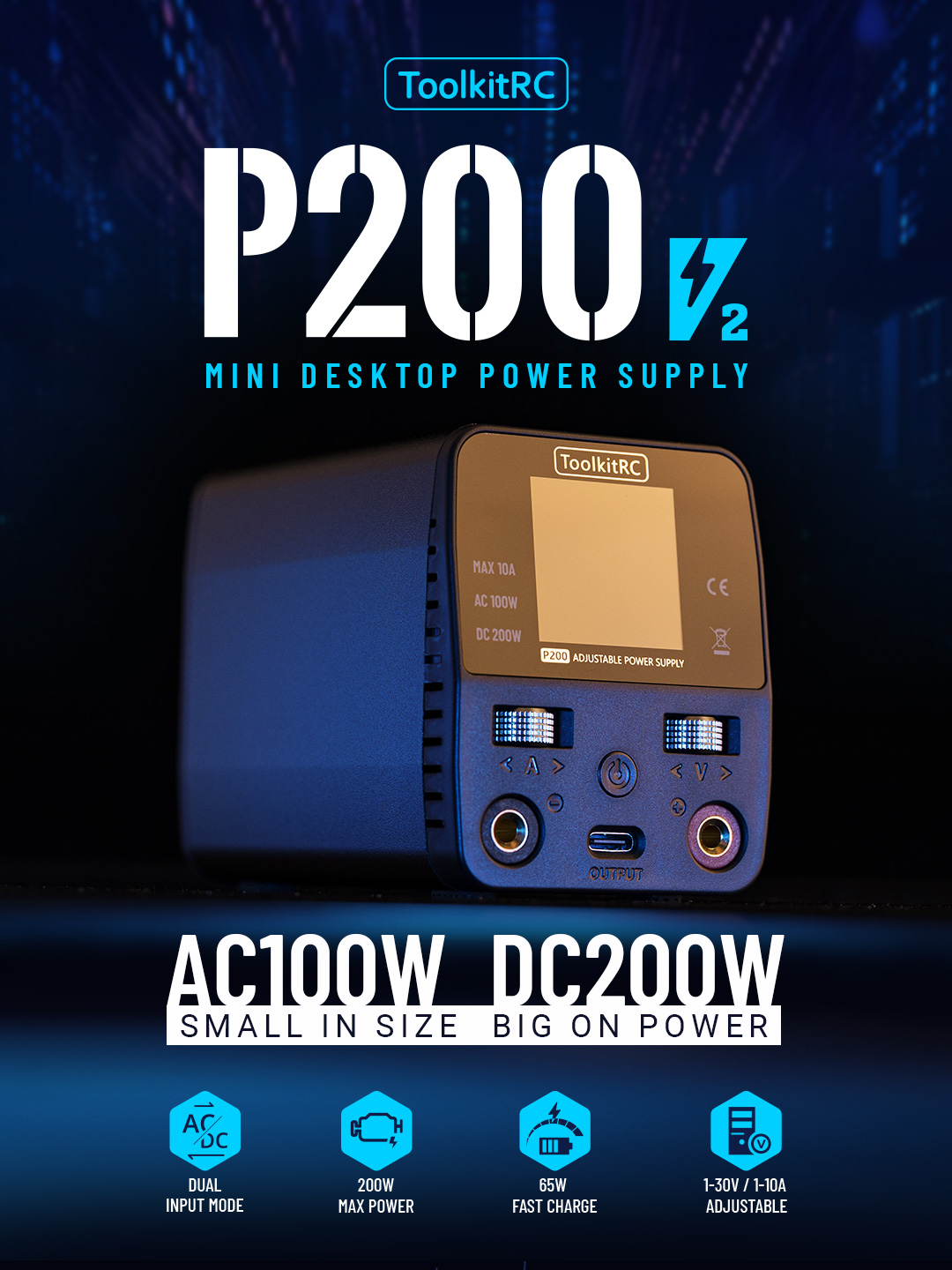

ToolkitRC

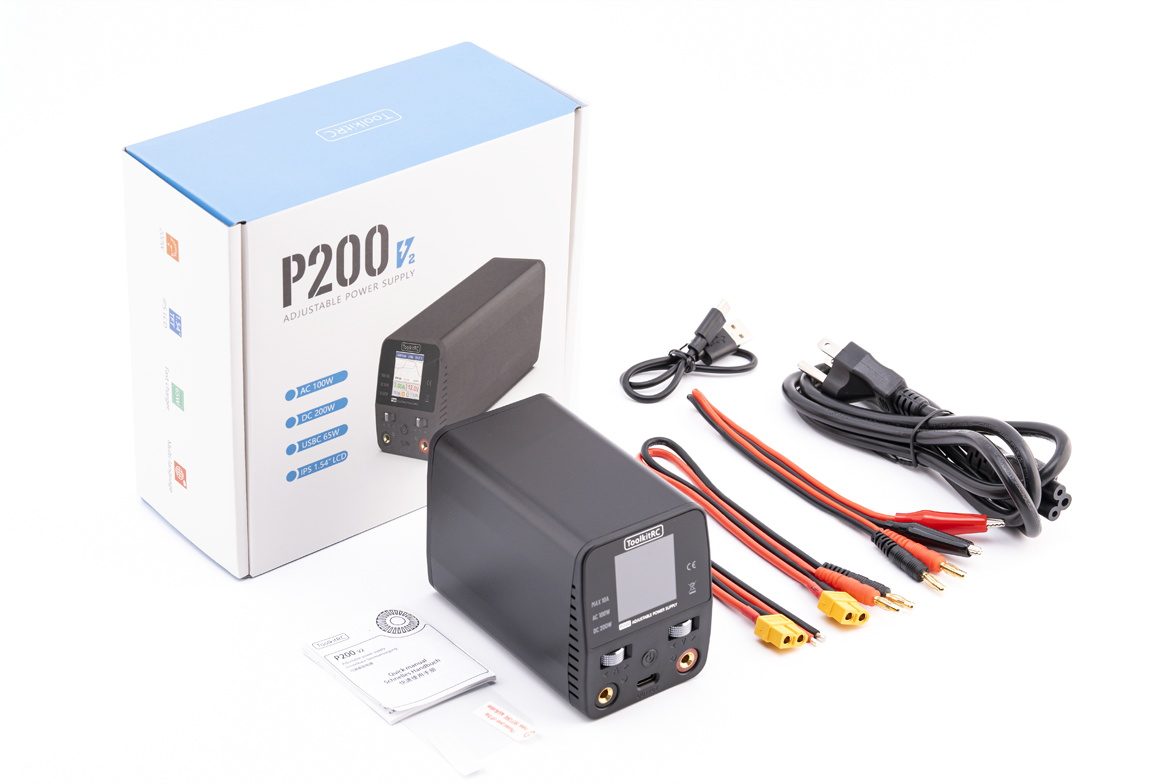

IN THE BOX

P200 V2 Power Supply × 1AC Input Cable × 1

DC Input Cable-1 × 1

Cable with XT60 Female

DC Input Cable-2 × 1

4.0 Banana to XT60 Female

DC Output Cable × 1

4.0 Banana to Alligator Clips

USB-C Cable × 1Manual × 1Screen Protector × 1

SPEC

General

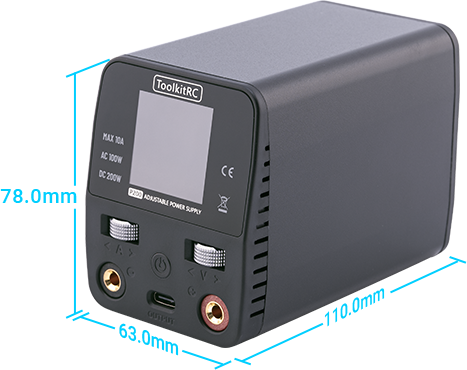

Product size

110.0×63.0×78.0 mm

Product weight

425g

Pack size

160.0×150.0×73.0 mm

Pack weight

735g

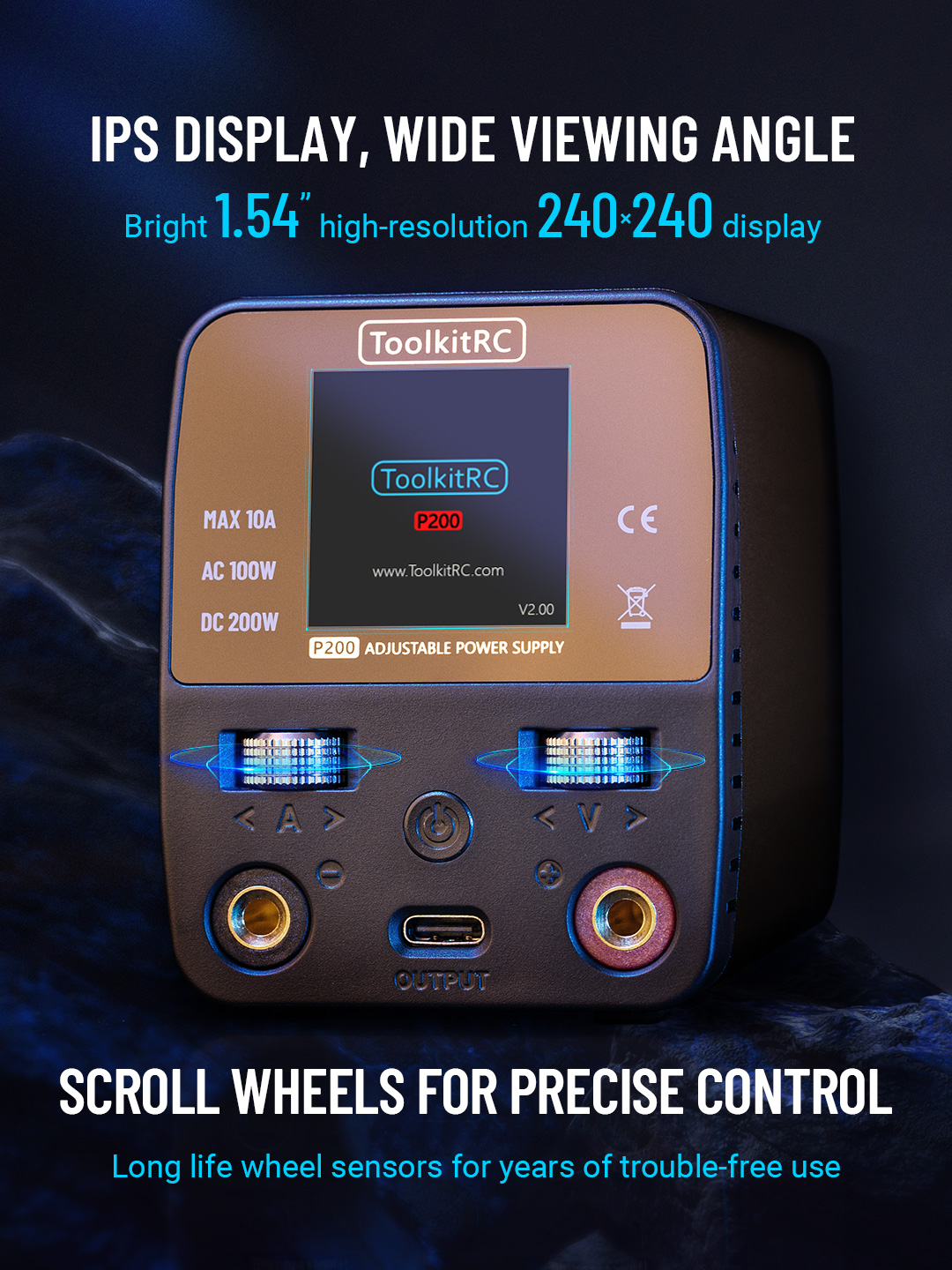

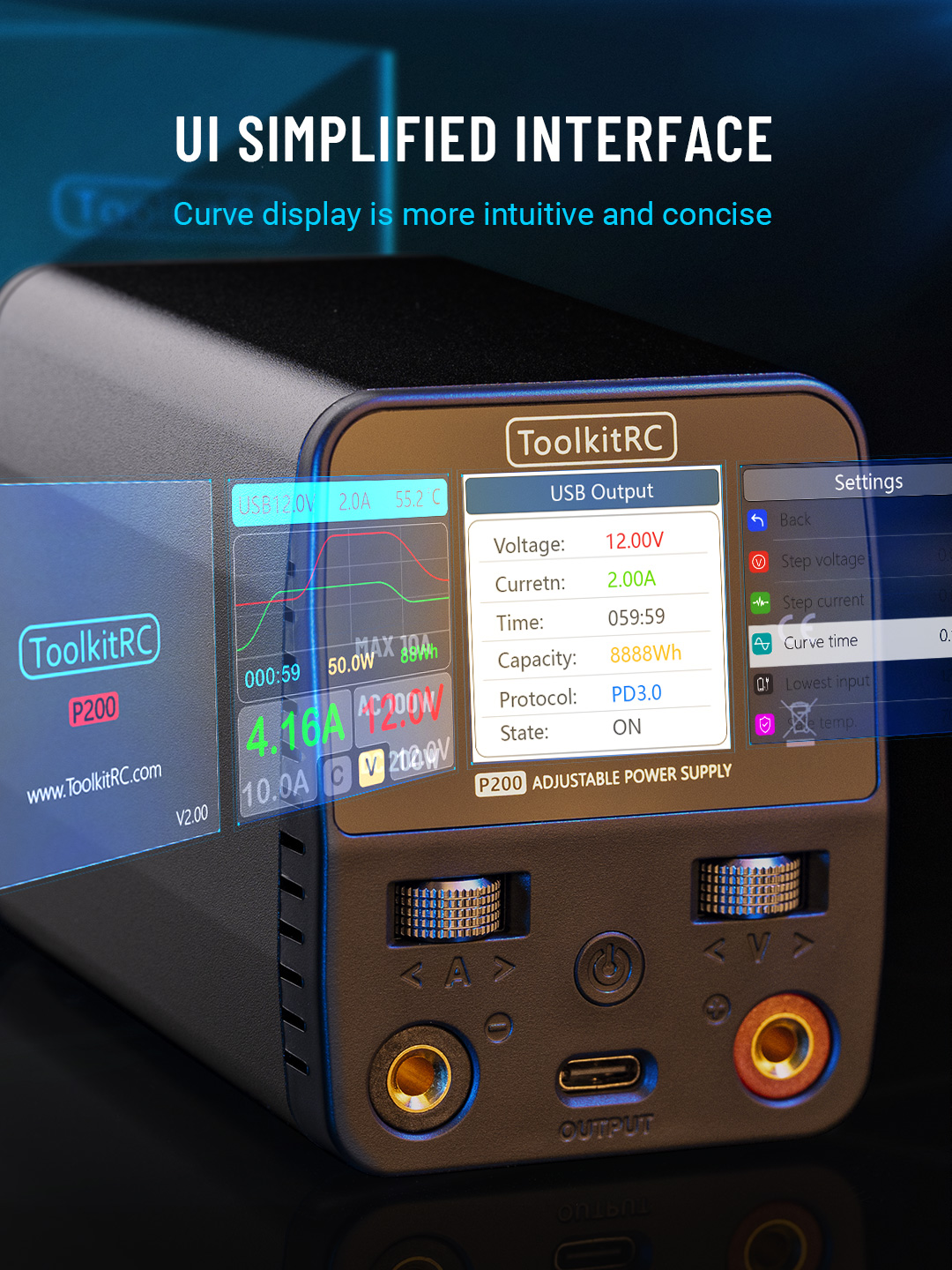

LCD

IPS 1.54″ 240×240 pixel

Main port

4.0mm banana female port

USB port

TYPE-C Fast charge, upgraded

Charger

Input voltage

AC 100-240V@MAX 100W
DC 7-28V@MAX 10A 200W

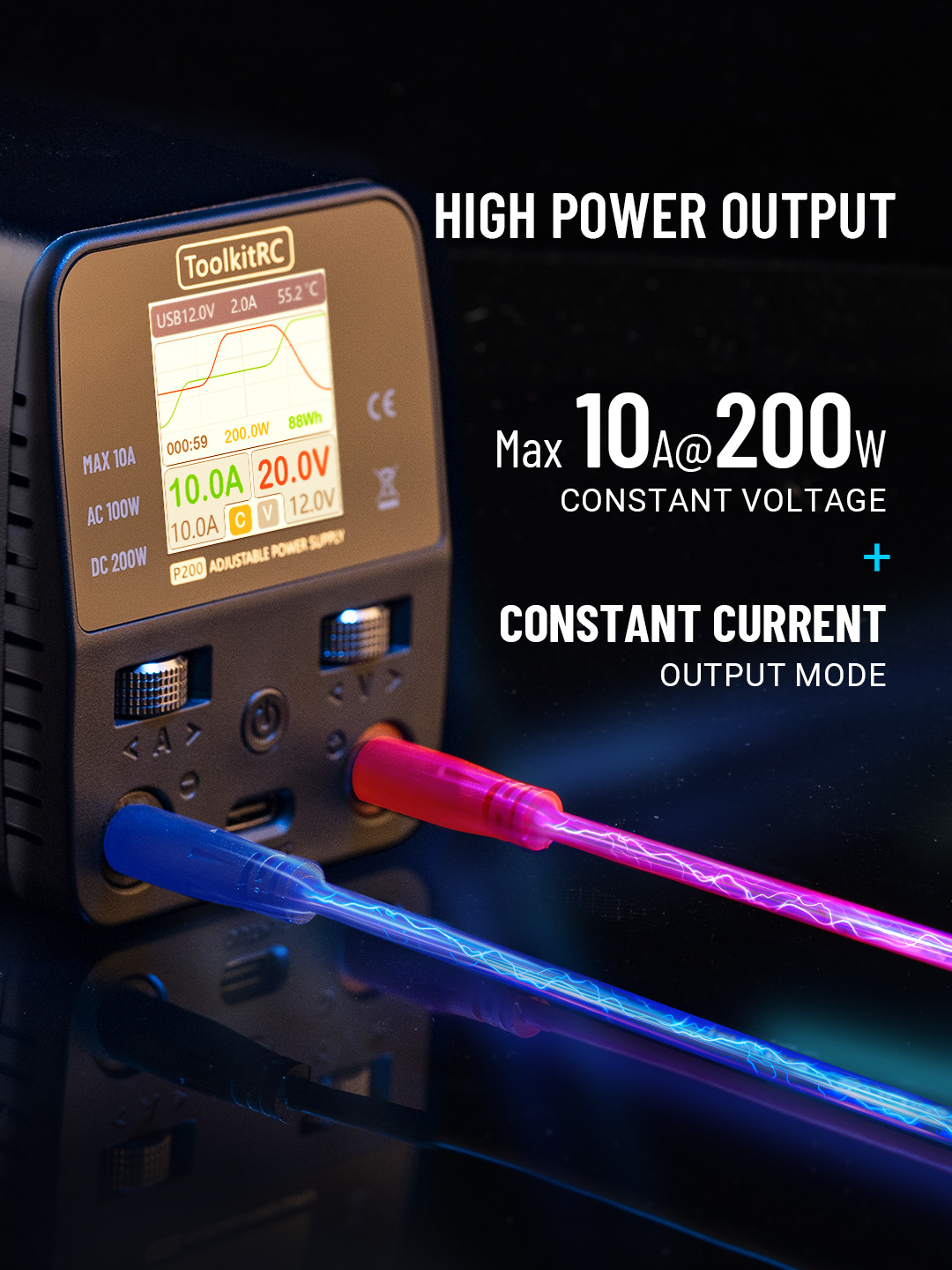

Main output

1.0-10.0A @MAX AC 100W/DC 200W

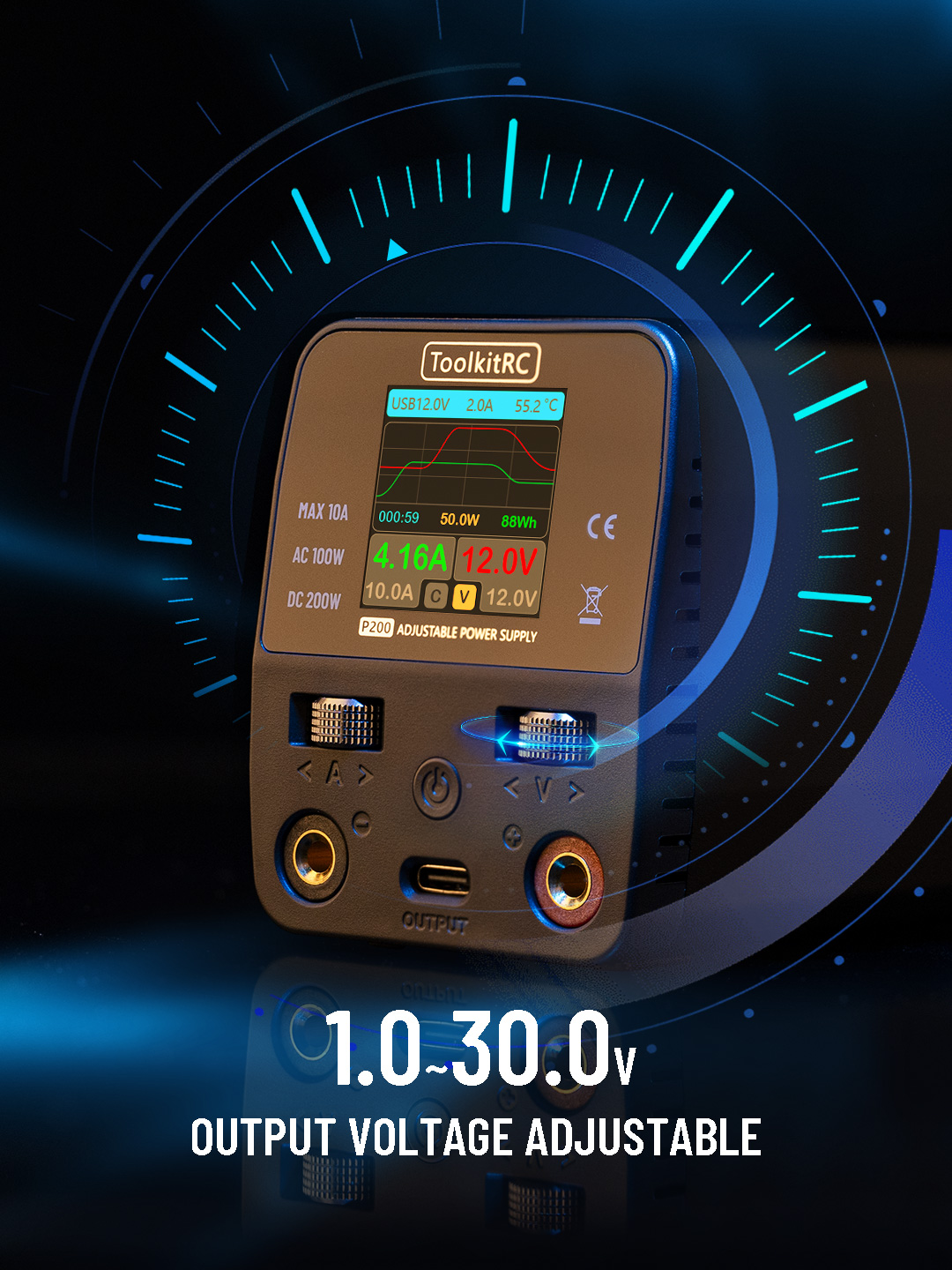

1.0-30.0V @MAX AC 100W/DC 200W

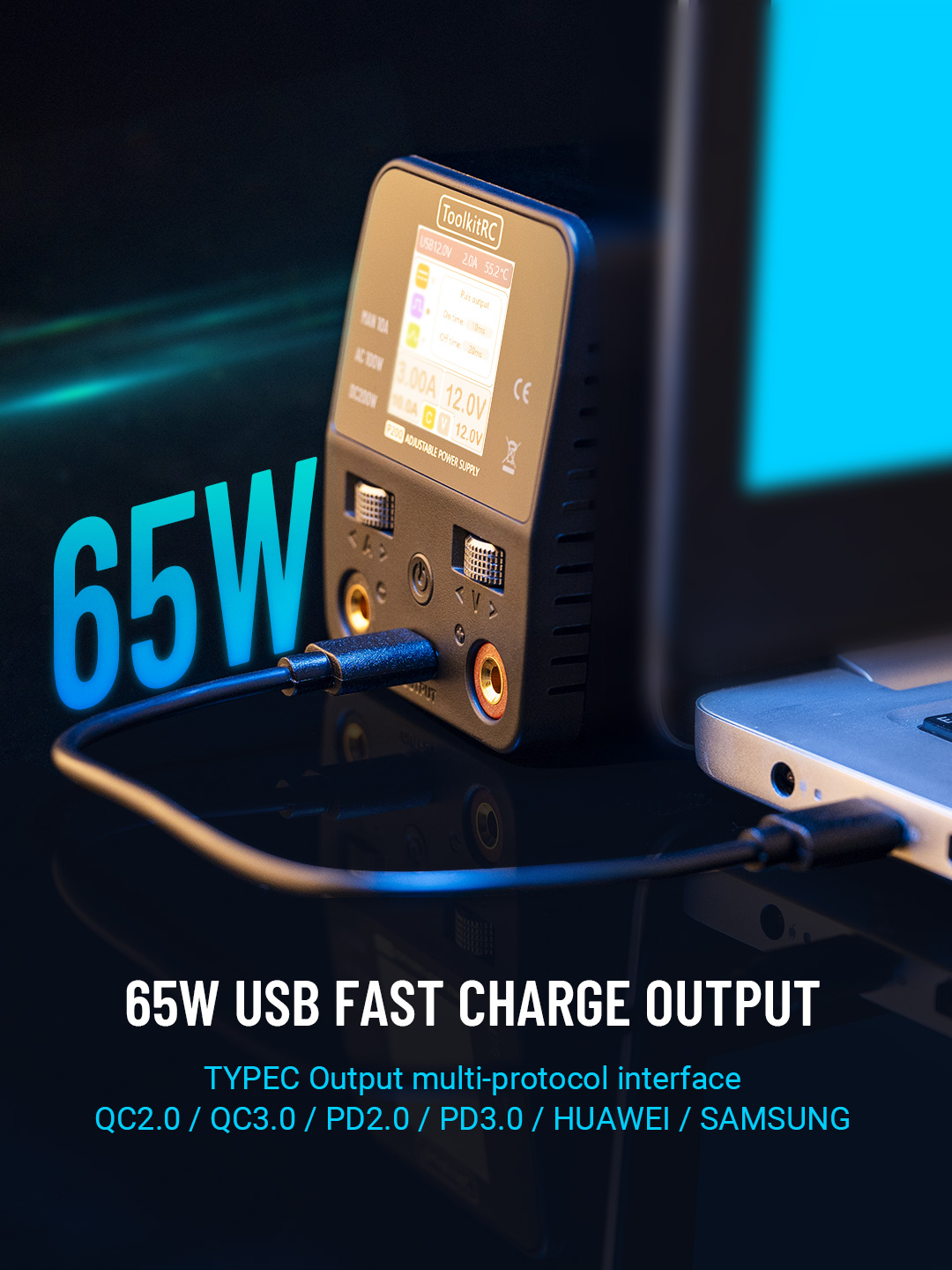

TYPE-C output

5.0-20.0V @MAX 65W

TYPE-C protocol

PD 3.0/PD2.0/PPS/QC4/QC3.0/QC2.0
AFC/FCP/SCP/PE2.0/PE1.1/SFCP/VOOC

Protection time

<1ms (Short circuit, OC ,OV)

Control cycle

8ms
